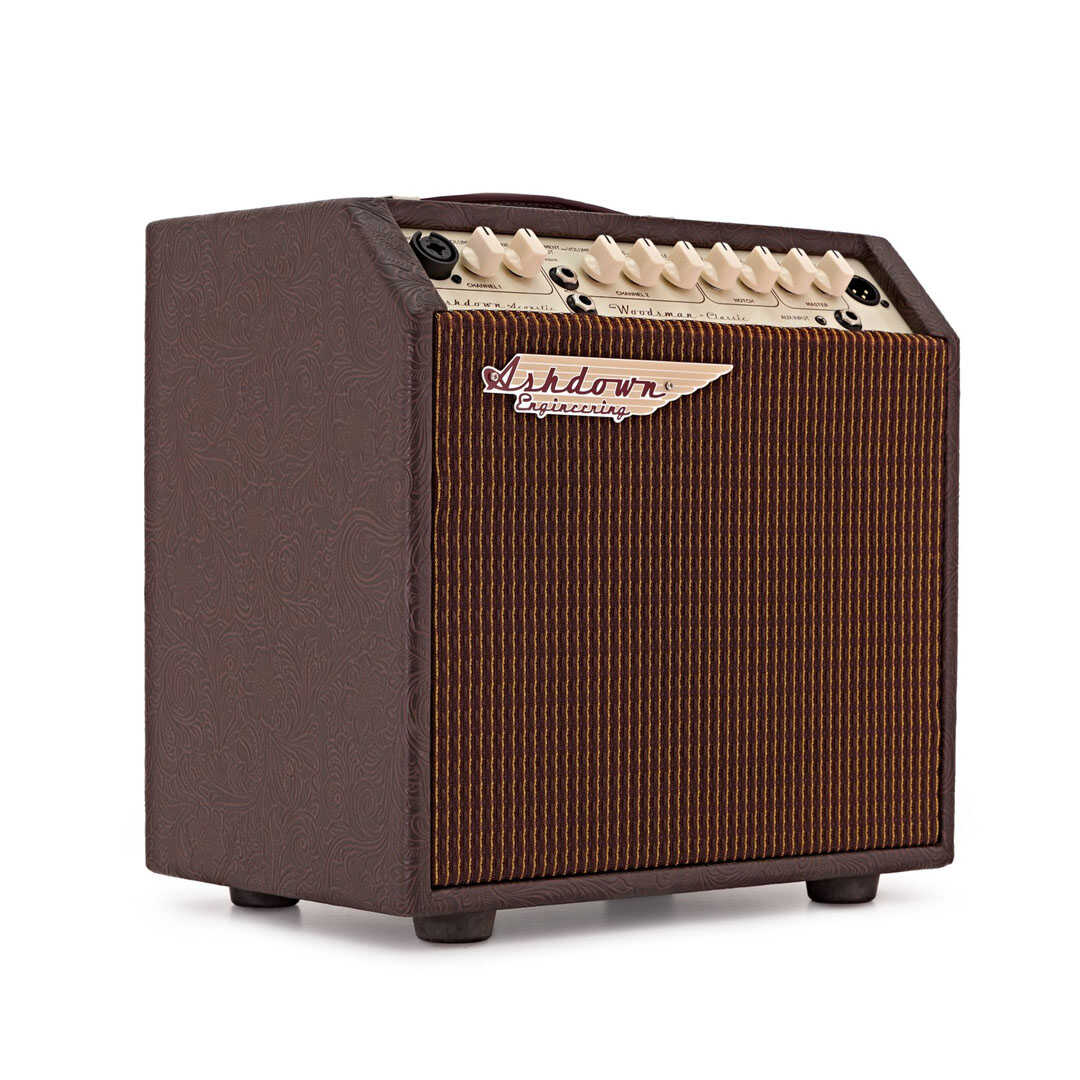

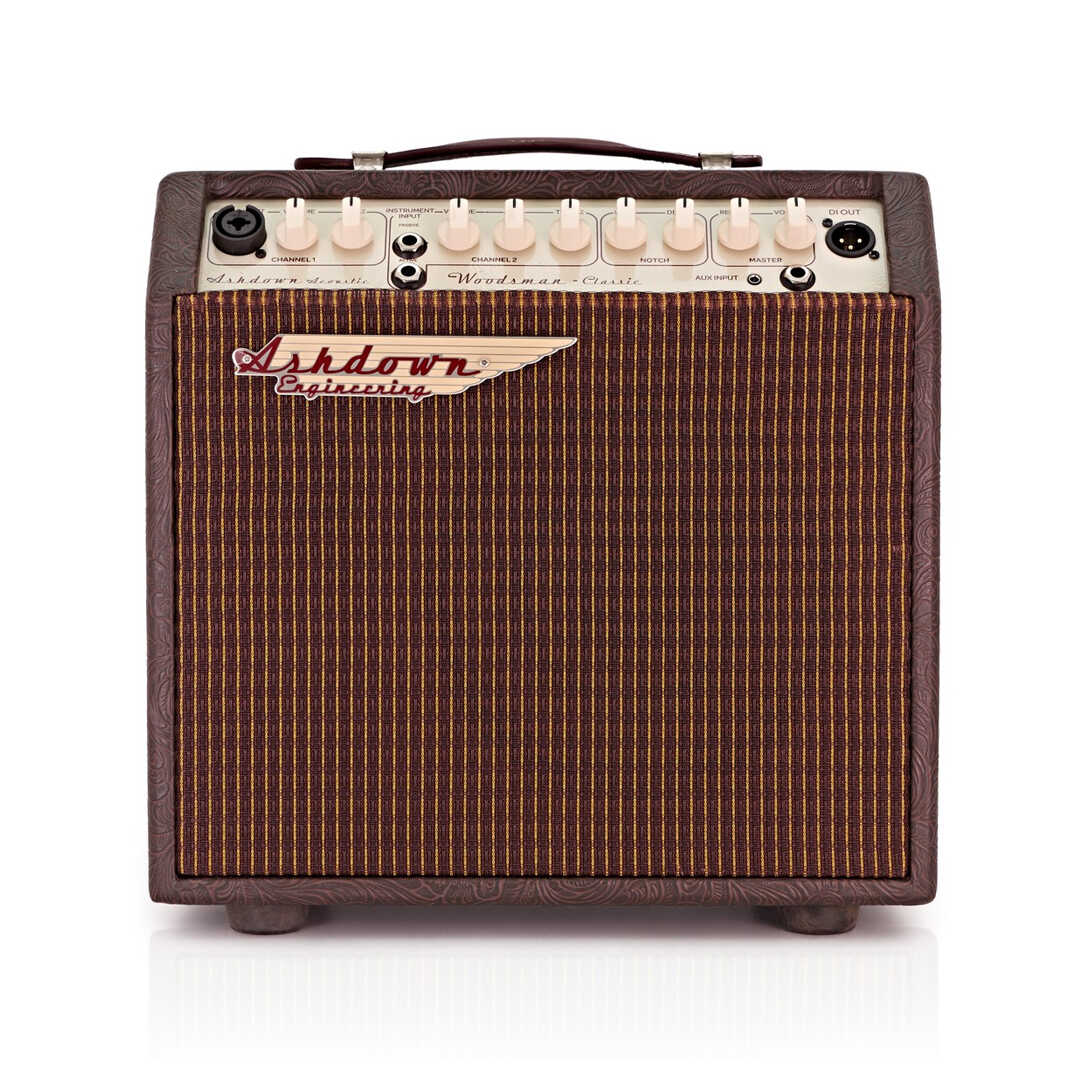

Woodsman Classic 40W Acoustic Combo
The Woodsman builds on a long legacy of acoustic amp design to deliver class-leading standards of vocal and instrument performance.

Designed to last
Designed for the new wave of acoustic performers, Ashdown announce the Woodsman family of amplifiers, combining traditional, beautiful wooden-cabinets with powerful modern features for live performance and recording.
“Ashdown has had a long tradition of creating great amplifiers for acoustic performers,” says Ashdown’s Mark Gooday. “With this latest range we’ve designed amps that deliver superb sound for a new generation of acoustic guitarists and singers and deliver the features they need at a new level of affordability.”

Plug in and Perform

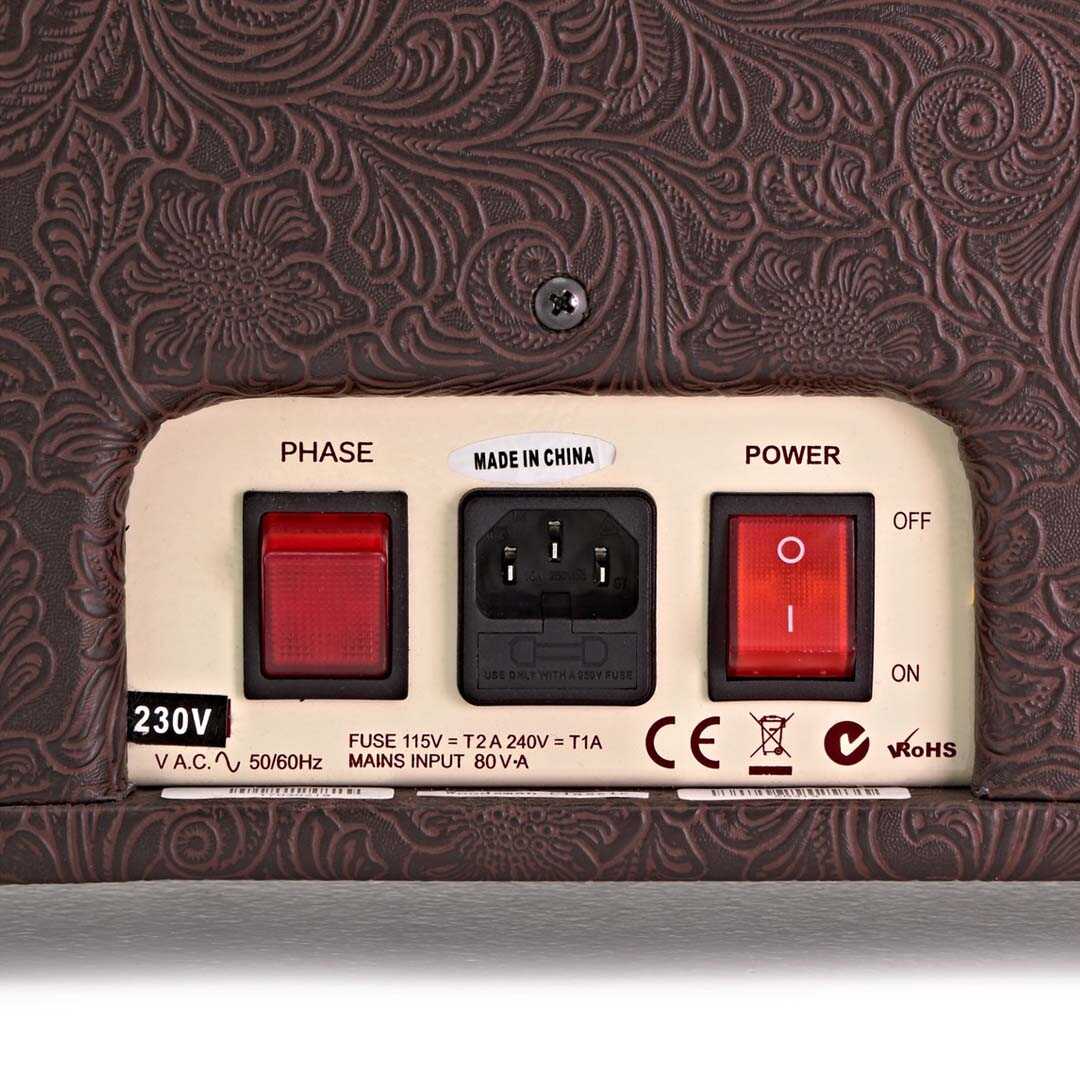

With inputs for microphones and acoustic guitar, Woodsman amps are ideal for duos, or solo singer/guitar players, delivering pure, clear, acoustic tone and essential performance tuning features, including phase reverse and feedback eliminating notch filters.

Woodsman Range
Three compact models are available - 25W Parlour, 40W Classic and 65W Jumbo. Each model features a custom-designed 8” Ashdown driver. The Classic and Parlour model also feature a horn for increased full-range sound.
The Classic
The 40W Classic model builds on the Parlour, adding a Tone control for the Mic Channel, Active and Passive inputs on the guitar channel, phase reversal switch, notch filter and an XLR DI out for recording or connecting to a PA.
Specification
Power Output | 40W |
Speaker Configuration | 1 x 8 |
Frequency Response | -3dB @ 28Hz and 28kHz |
High Instrument Input | Impedance 10k Ohms, input range 300mV - 20V p-p |
Low Instrument Input | Impedance 3.9M Ohms, input range 150mV - 10V p-p |
Line Input | 10k Ohms Level 0dBu |
Line Output | 4.7k Ohms Level 0dBu |
Signal to Noise | Greater than 80dB (EQ Flat) |
EQ | +/- 15dB @ 100Hz and 10kHz |
Effects send | 10k Ohms Level 0dBu |
Distortion |
Less than 0.8% THD |
H x W x D (mm) | 326 x 350 x 225 (H: +15mm for feet) |
Weight (kg) | 8.54 |
