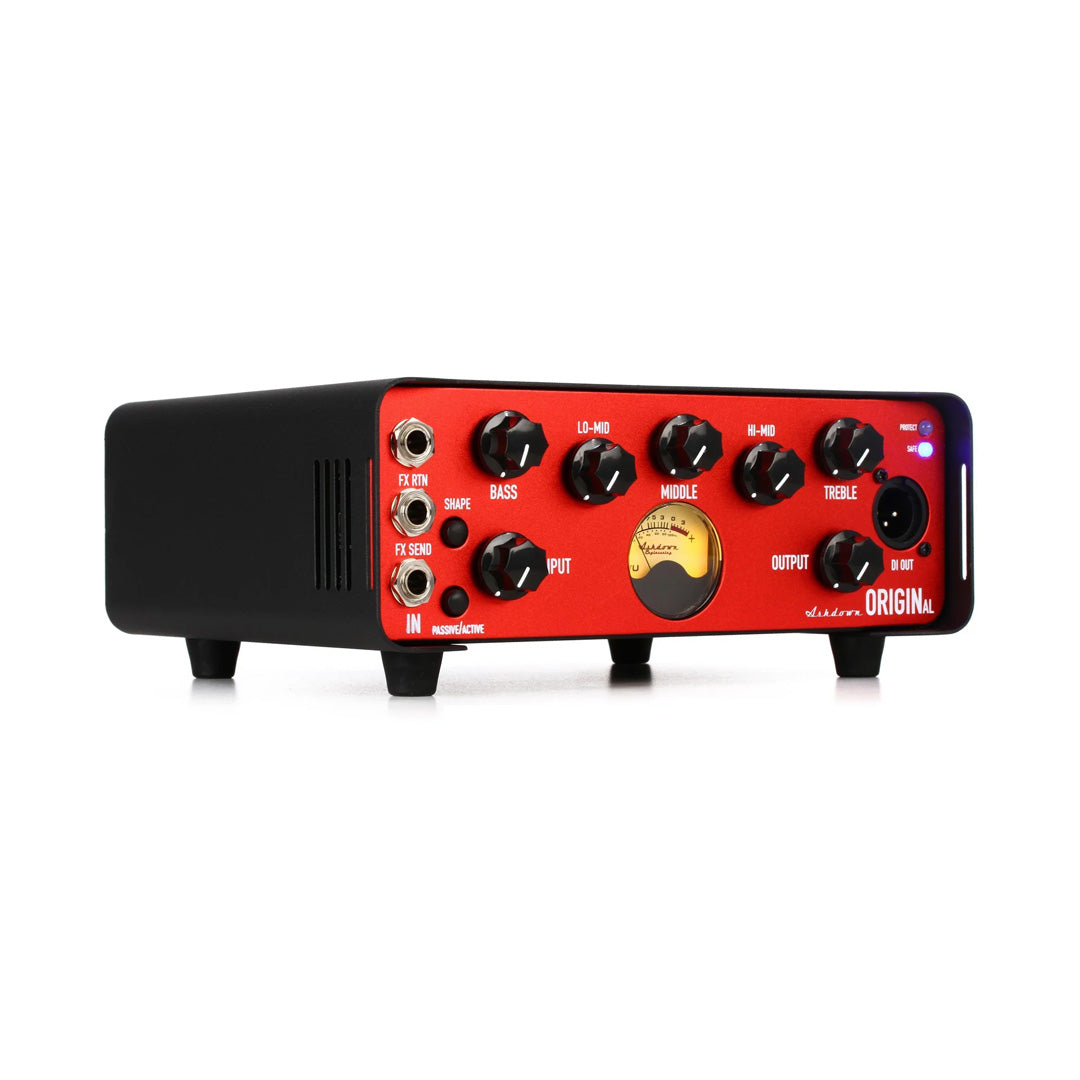

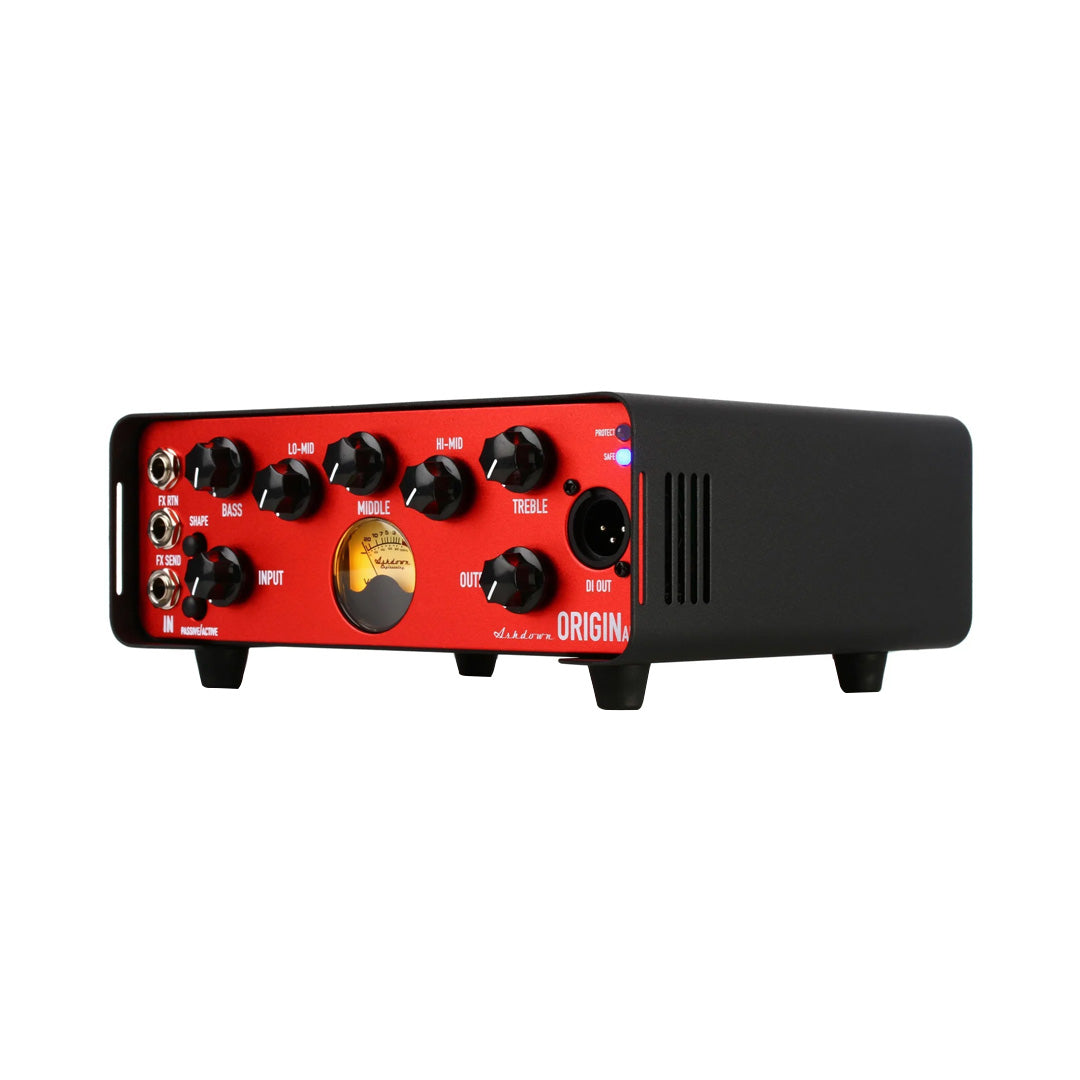

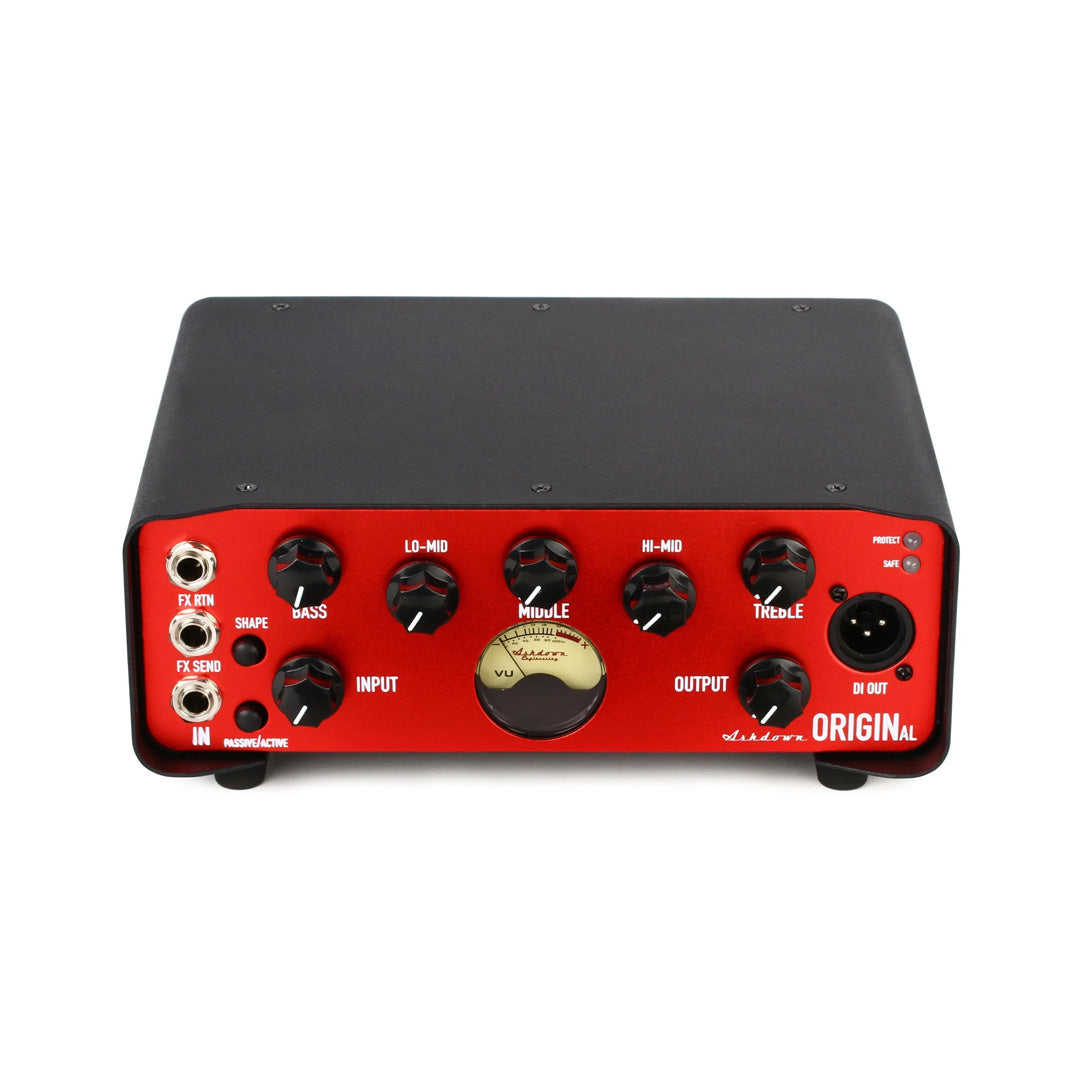

ORIGINAL-HI 300 WATT MINI BASS HEAD
300 WATT MINI BASS HEAD
At the heart of the OriginAL is a 5-band EQ, offering precise control over your bass, middle, and treble frequencies, with hi-mid and lo-mid knobs for fine-tuning. The Shape control further enhances your tone, sculpting it to perfection.
Simple yet Powerful EQ
With the signal at its optimal level, you then hit a defined set of features designed enhance your tone. The OriginAL features a tried and tested 5-band EQ, controlling your traditional bass, middle and treble with a lo-mid and hi-mid sitting comfortably either side of the variable middle control. The additional Shape control further sculpts your tone, lifting the frequencies that really count – like a smiley face on a graphic equalizer.
Create the Perfect Rig

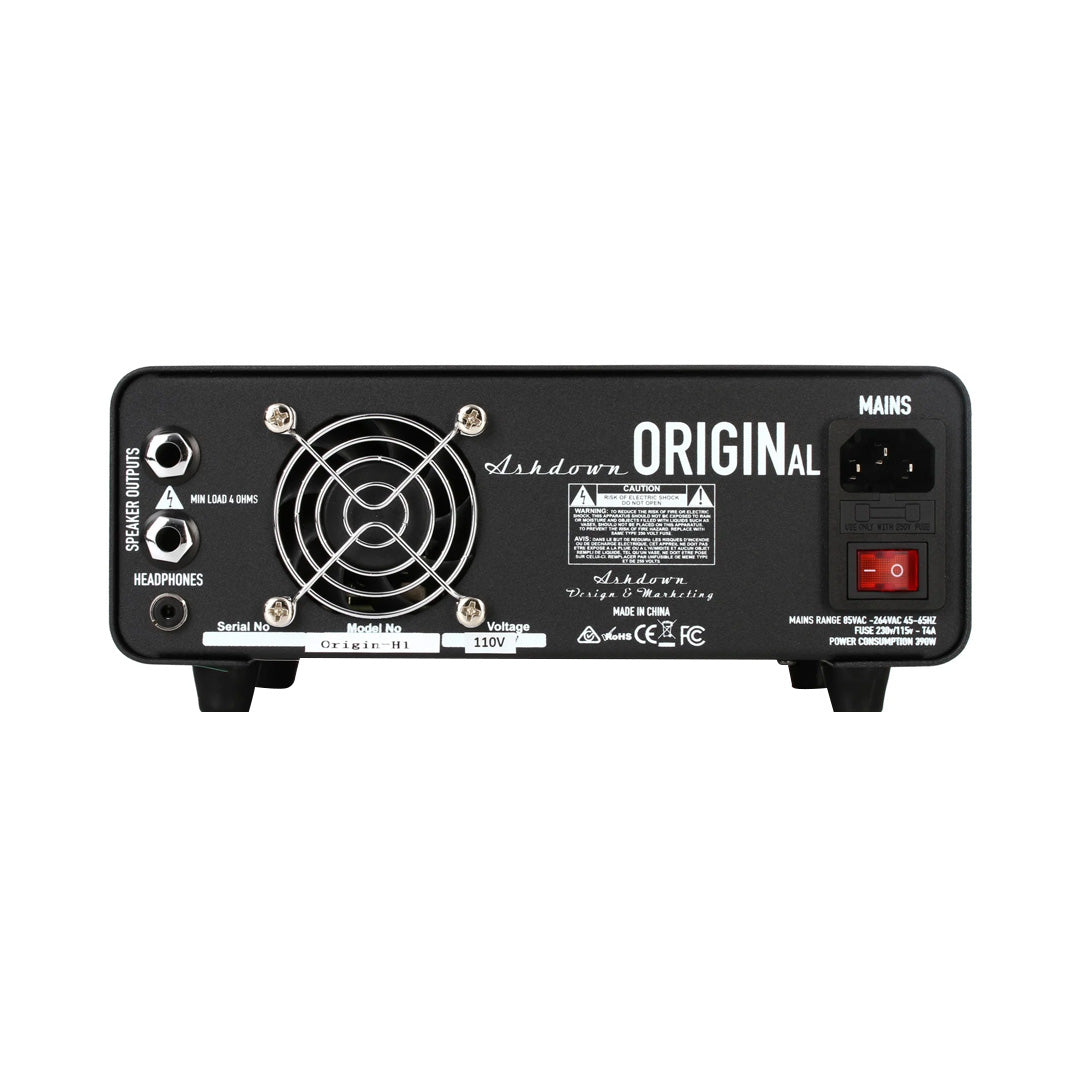

To the rear of this condensed unit is a very well considered headphone out, which doubles this gig-ready head as a great home practice device.
A pair of 1/4" jack sockets with a minimum 4 ohm load means the OriginAL HD-1 can be used to power a single 8 ohm cabinet, a pair of 8 ohm cabinets or a single 4 ohm cabinet.
A pair of 1/4" jack sockets with a minimum 4 ohm load means the OriginAL HD-1 can be used to power a single 8 ohm cabinet, a pair of 8 ohm cabinets or a single 4 ohm cabinet.
SPECIFICATIONS
- Power Output - 300 Watts
- Power Requirement - 115-230 Volts
- Speaker Outputs - 2 x Jack Outputs
- High Instrument Input - Impedance 3.9m Ohms, input range 150mV - 20mV p-p
- Low Instrument Input - Impedance - 1M Ohms, input range 150mV to 10 V p-p
- Line Input - Impedance 10k Ohms, input range 300mV - 40V p-p
- DI Output - 600 Ohm balanced / Level -20dBu nominal
- Impedance - Minimum 4 Ohm
- Signal to noice - Better than 80dB (EQ flat)
- EQ - Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz
- Effects Send - Impedance 22k Ohm / Level 0dBu nominal
- Effects Return - Impedance 22k Ohm / Level 0dBu nominal
- H x W x D - 89 x 22 x 209
- Weight (kg) - 1.8
