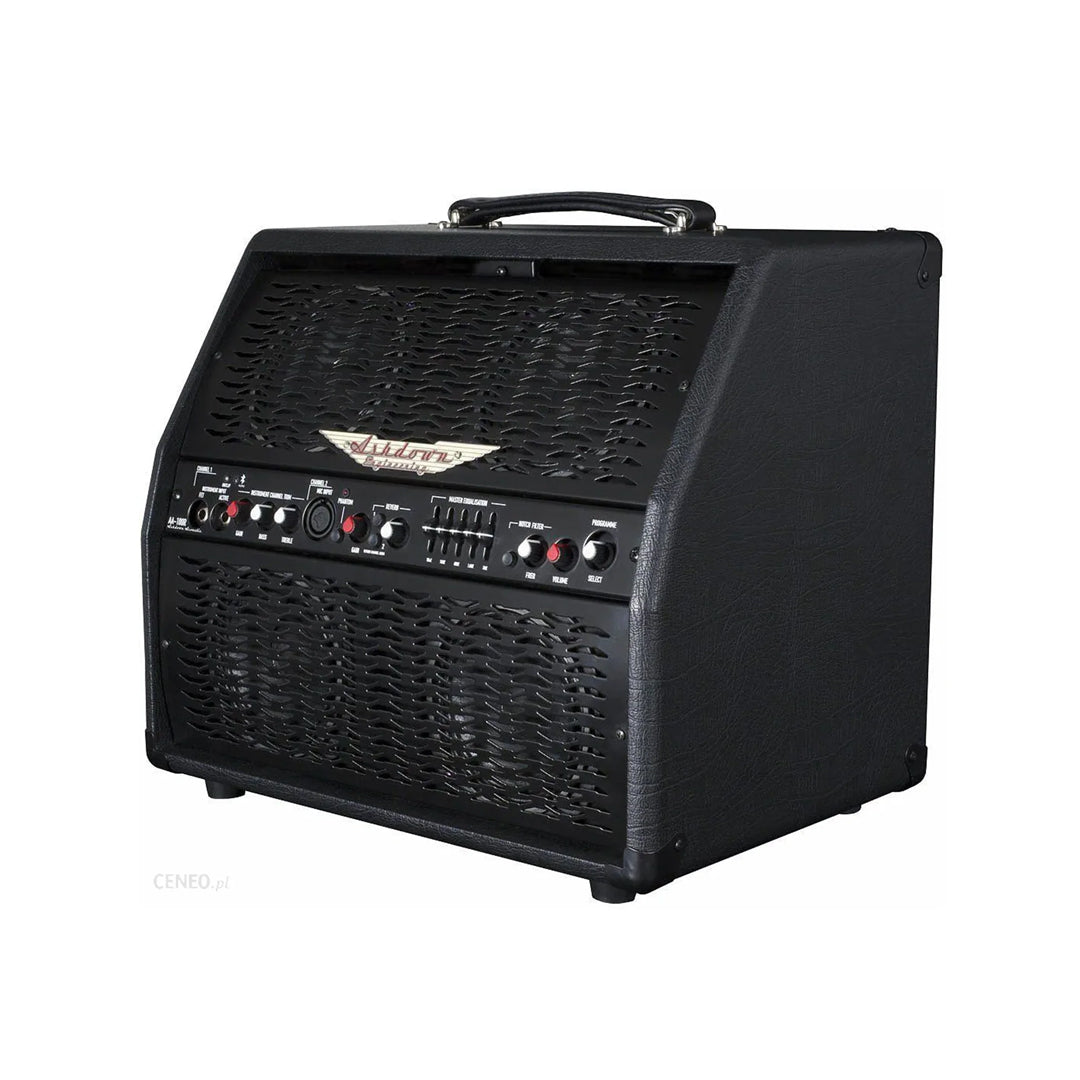

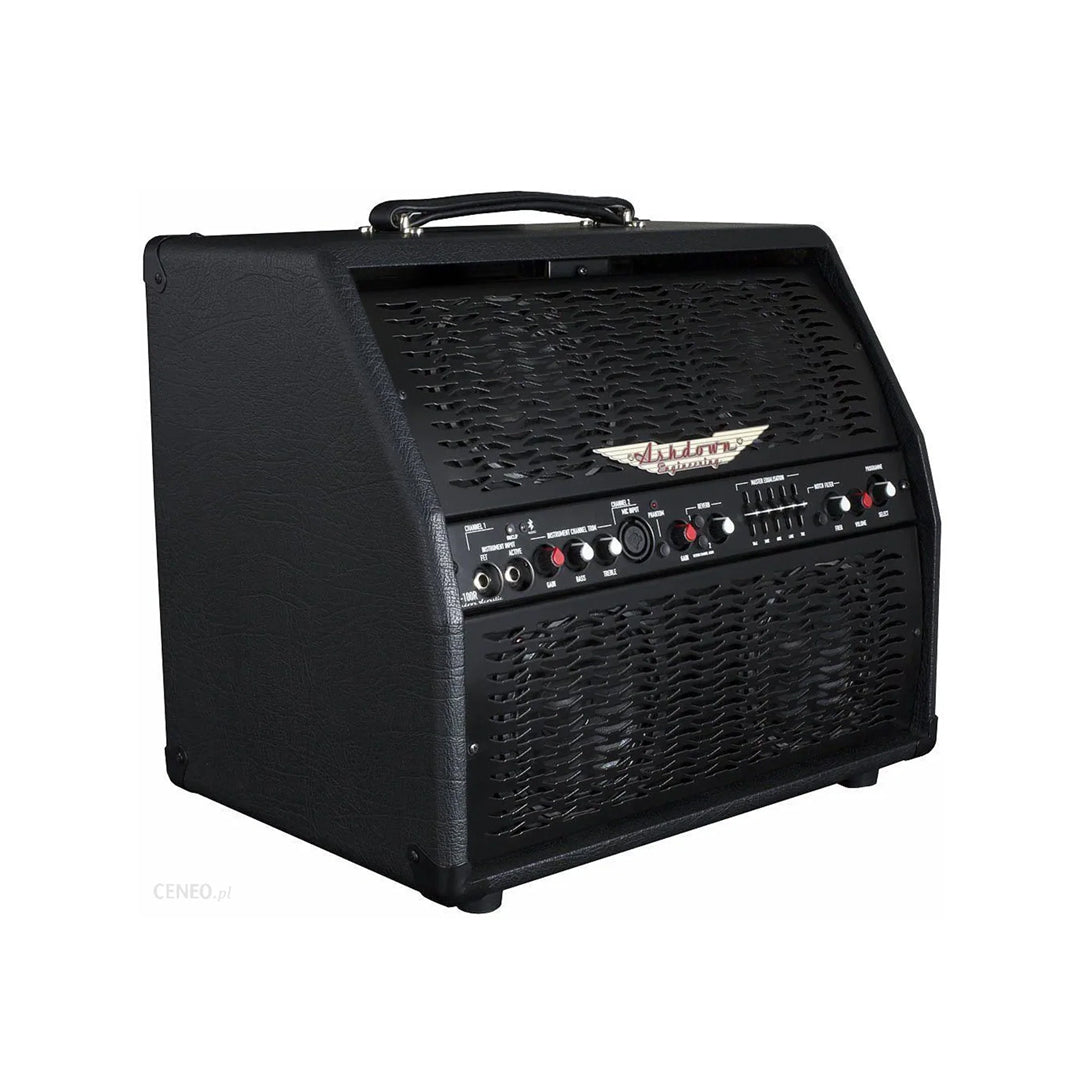

Ashdown AA-100-R Professional Acoustic Combo
A 50W acoustic combo amp with reverb that has a late 80's to early 90's sound and is equipped with 2 5-inch Celestion speakers. It is also possible to play external audio using the Bluetooth function. This is the perfect amp for stage and practice.
2 Channels for maximum flexibility
Channel 1 is the instrument input channel. It has rotary controls for Gain, Bass, and Treble, as well as passive and active inputs. Channel 2 is equipped with an XLR input with gain control. Equipped with phantom power, it is also possible to use a condenser microphone.
Perfectly partnered Reverb
Reverb can be turned on/off for each channel. Adjust the reverb sensitivity with the rotary switch.
EQ designed for Acoustic Instruments
The master out is equipped with a 5band graphic EQ and adjustable notch filter. It is also equipped with 16 preset reverbs, allowing you to select from small rooms to large hall sizes. It is designed to play natural tones depending on the preset.
Professional Outputs

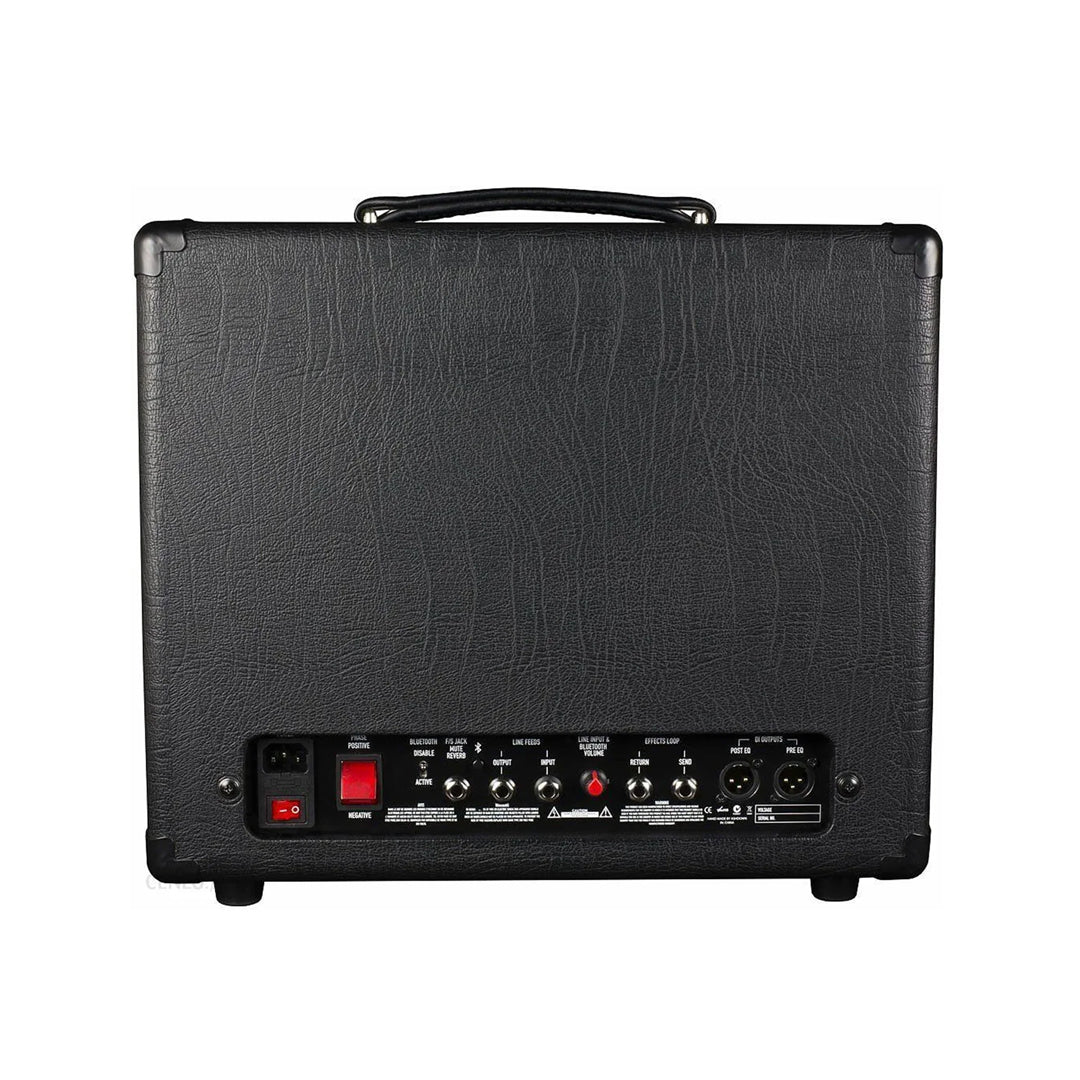

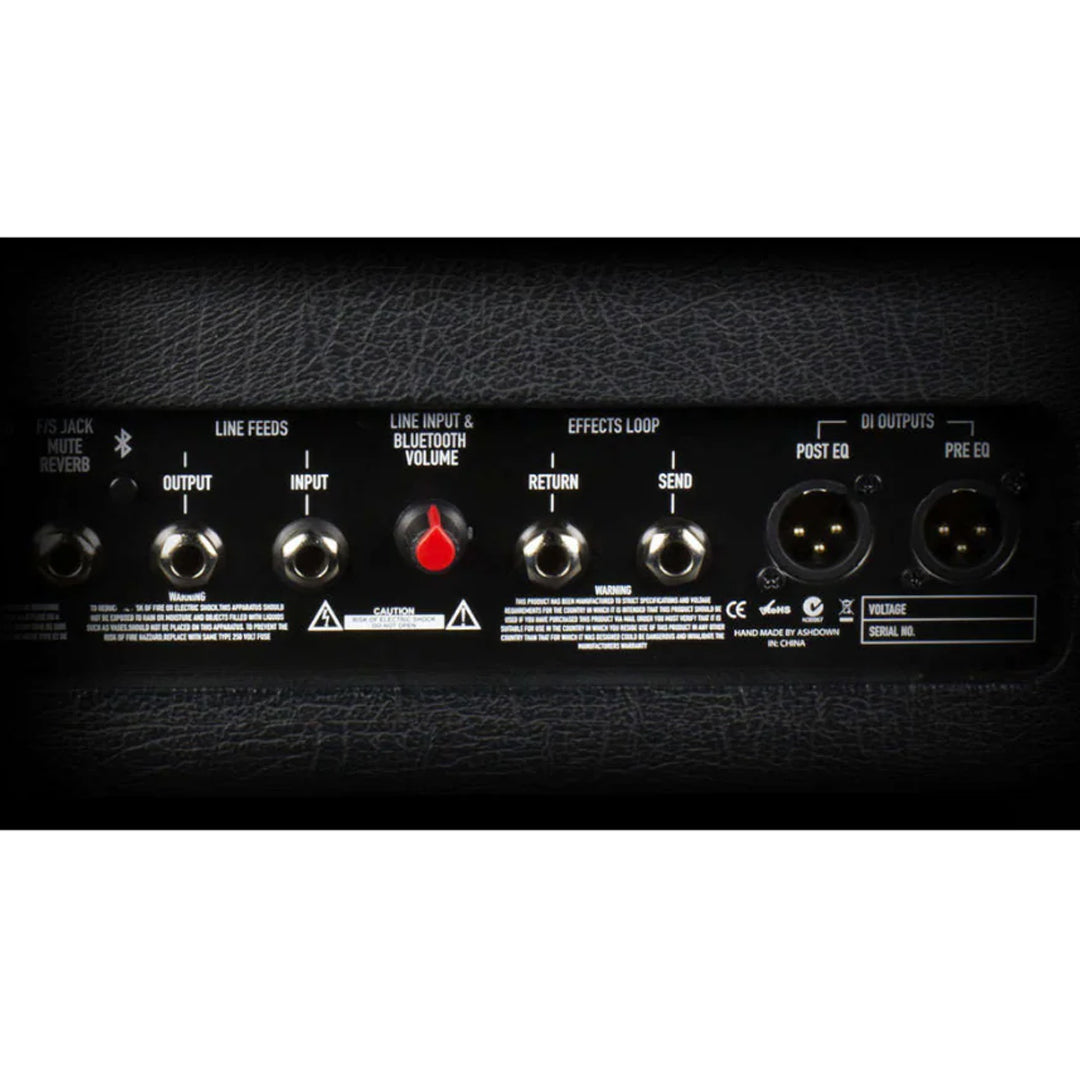

The back panel has POST EQ, PRE EQ, and XLR DI outputs that can be connected to an external PA. It also features a signal chain, line input/output feed, balanced line input, and effects loop. This is an acoustic combo amplifier that boasts impeccable specs and even has built-in Bluetooth functionality.
Specifications
| power output | 100W RMS |
| speaker output | Output terminal x2 |
| speaker output impedance | 4Ω(Minimum) |
| Input impedance (Hi) | 3.9MΩ(150mV - 20V p-p) |
| Input impedance (Low) | 1MΩ(150mV - 10V p-p) |
| line input impedance | 10kΩ(0dBu) (300mV - 40V p-p) |
| DI output impedance | 600Ω(-20dBu) |
| SEND impedance | 22kΩ(0dBu) |
| Return impedance | 22kΩ(0dBu) |
| SN ratio | Better than 80dB (EQ flat) |
| EQ | Bass +/-15dB @ 100Hz Lo Mid +/-15dB @ 220Hz Middle +/-15dB @ 660Hz Hi Mid +/-15dB @ 1.6kHz Treble +/-15dB @ 7kHz |
| size | |
| weight | 13kg |
