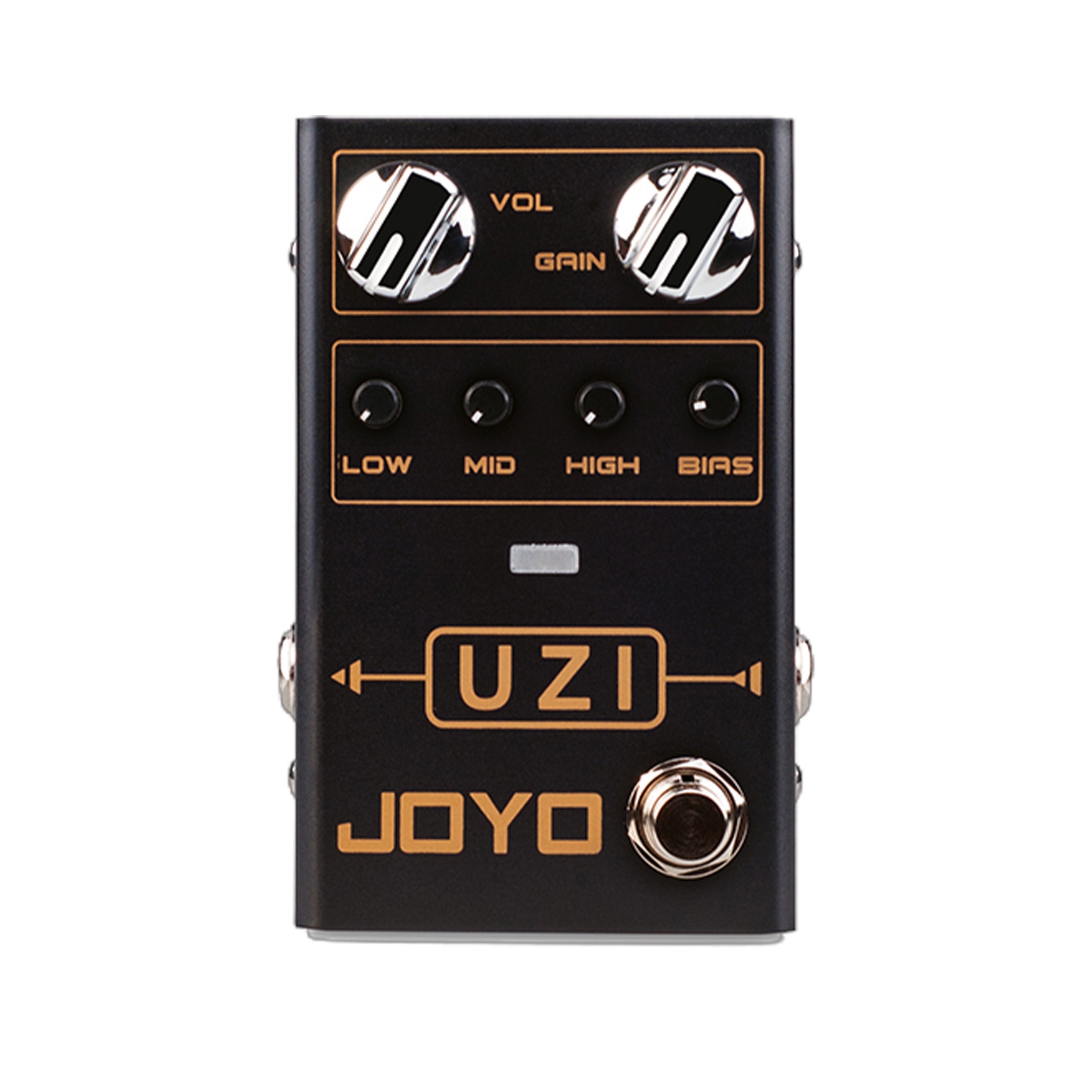

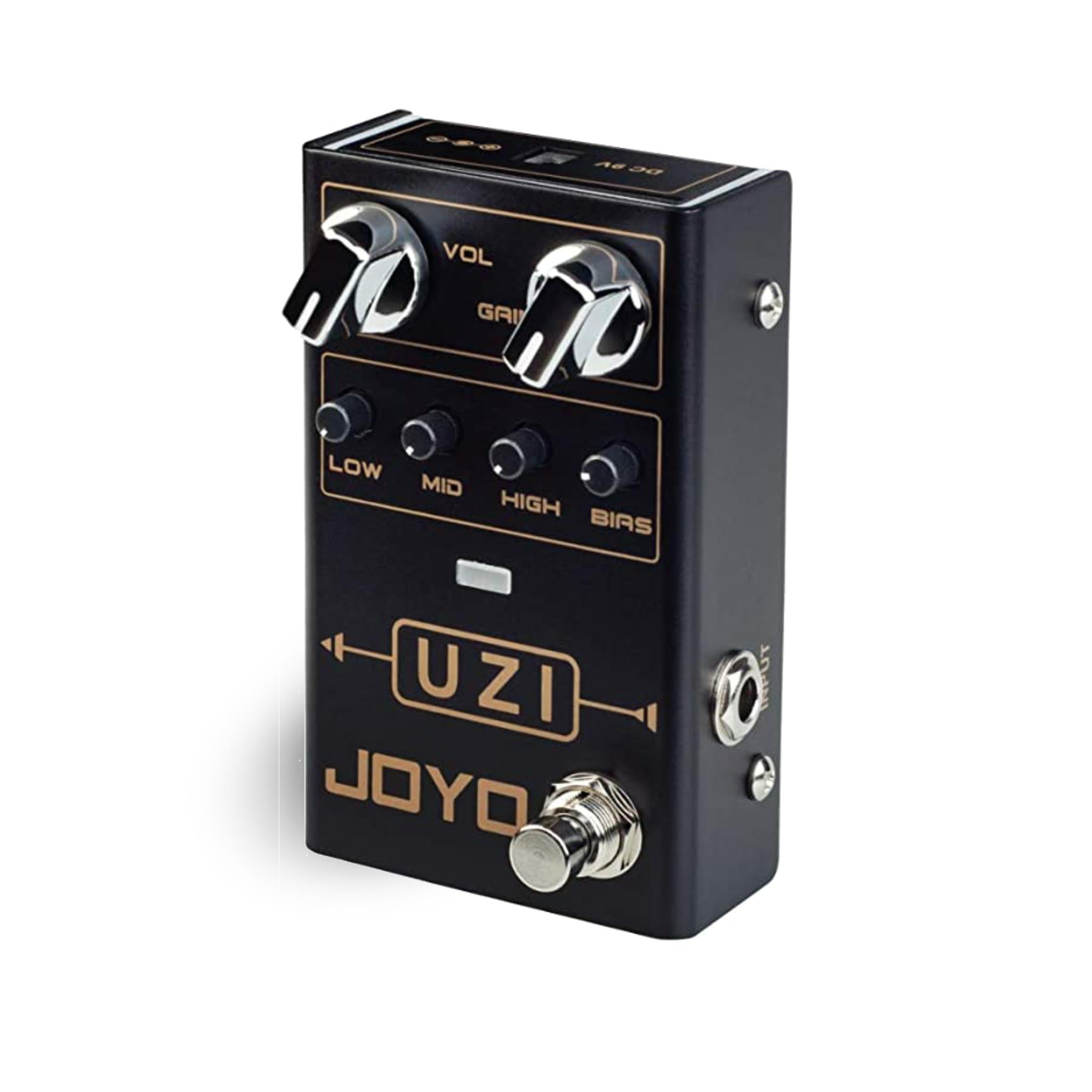

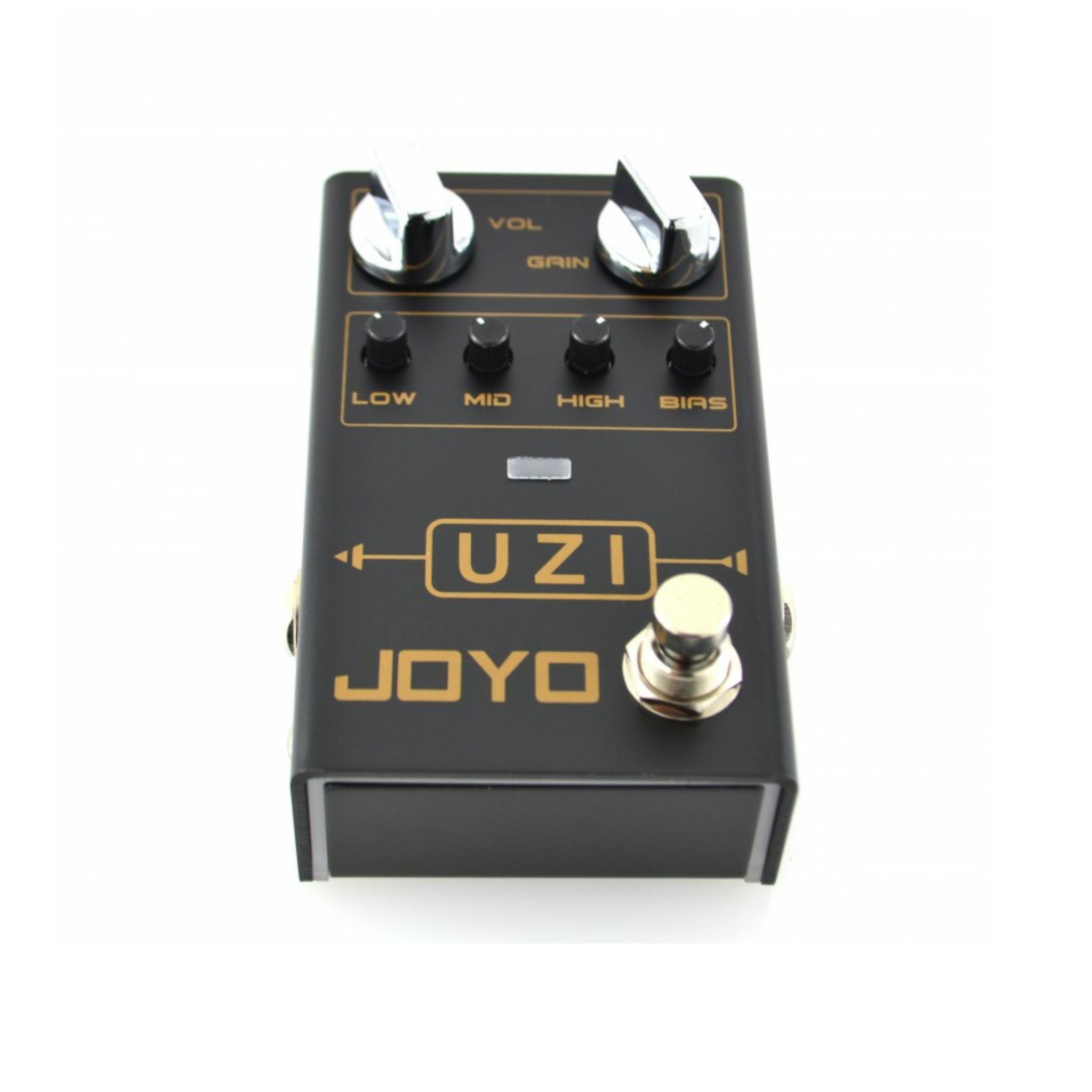

JOYO R-03 Uzi High Gain Distortion Guitar Effect Pedal
Specially designed for heavy metal, it’s characterized by High Gain. With a BIAS knob, you can switch easily between American Distortion and British Distortion. Meanwhile, UZI has a GAIN Control Knob and a VOLUME Control Knob, both are of dynamic balance, adjust the GAIN knob while don’t adjust the VOL knob, the signal from the circuit will adjust automatically, ensuring the Volume is the same as before.
Controllers: Volume, Gain, Bias, Low, Mid, High, LED Toggle
With no battery compartment
The pedal features controls for Volume / Gain, Low, Mid, High & Bias
LED Effect indicator - On when the footswitch & pedal are active
Footswitch
DC input on the rear.
With no battery compartment
The pedal features controls for Volume / Gain, Low, Mid, High & Bias
LED Effect indicator - On when the footswitch & pedal are active
Footswitch
DC input on the rear.
Specifications
| Effect types | Distortion |
| Effect numbers | 1 |
| Controls | Vol, Gain, High, Mid, Low, Bias |
| Footswitchs | 1 |
| Input Jack | 6.35mm |
| Output Jack | 6.35mm |
| Input Impedance | 1MΩ |
| Output Impedance | 200Ω |
| Rated current consumption | 20mA |
| Working Voltage | DC 9V (center minus) |
| Signal Bypass Type | Ture Bypass |
| LED Mod | Sync, Always, Off |
| Battery powered | No |
| Dimensions | 109*67*48 mm |
| Weight | 248g |
