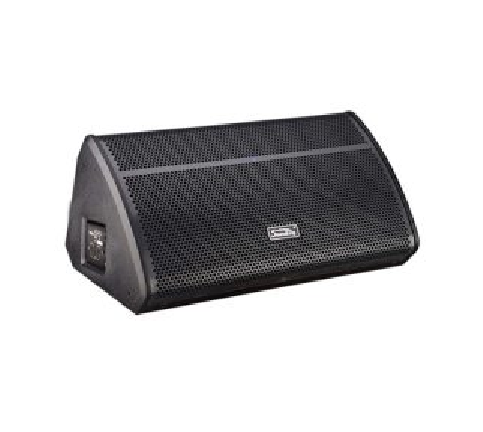

The FHE15MA is specially designed for stage monitoring and is designed with a 2-way speaker system. The LF transducer is a high-power 15” woofer, which is strong and full of energy. The HF transducer adopts a 1.7” compression driver + constant directivity horn, PEEK sound film, which has ultra-high resolution, and also ensures the fullness and transparency of the mid-frequency, effectively improving the clarity of the speaker, and making the sound field more uniform. 45° and 20° angles are available, suitable for different stage monitoring distance requirements. The square horn design can easily adjust the horizontal and vertical coverage angles to suit different stage areas.
Features:
15” woofer with high power and low distortion. The diaphragm is made of carbon fiber composite pulp, which is light in weight and good in rigidity. The appropriate cone apex angle and breathable cloth composite edge paper cone can effectively broaden the intermediate frequency characteristics and have a good transient response;
The HF compression driver uses PEEK sound film, which has good ultra-high frequency characteristics and a softer sound quality than titanium alloy sound film. The magnetic circuit structure with short circuit ring design effectively reduces the third harmonic distortion.
The specially designed frequency response characteristics and linear phase characteristics make the sound quality better, the sound image positioning is clear, and it is more suitable for live stage monitoring and sound reinforcement;
15mm plywood enclosure, grooved splicing, good rigidity, pure sound, and the surface is sprayed with high-hardness granular embossed paint;
The high-hardness steel mesh with arc-shaped design and special sound-transmitting cotton is adhered inside to provide effective protection for the speaker;
There are 7 built-in M10 steel hoisting screw hole devices that can be hung in all directions to meet the needs of different use occasions; the built-in LC crossover network uses high-precision and high-quality electronic components to ensure the true restoration of sound quality
The built-in LC crossover network uses high precision and high quality electronic components to ensure the true restoration of sound quality. High and bass two-stage equalization knob for easy tone adjustment on the spot.
