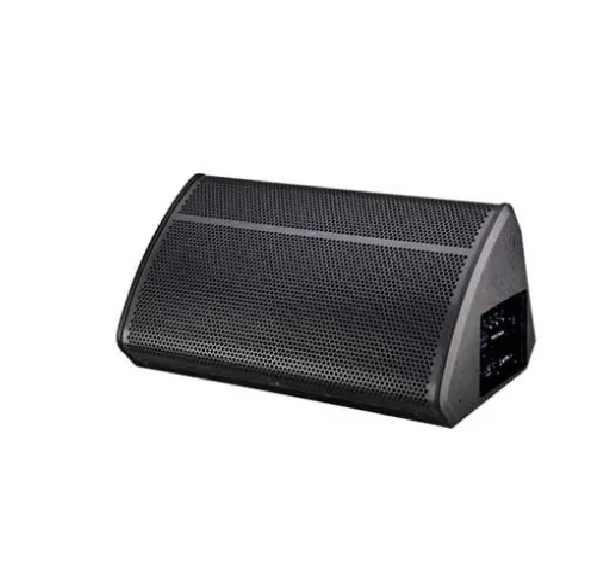

High-Performance 12-inch Active Stage Monitor for Live Sound Reinforcement
The FHE12MA is a high-performance stage monitor specifically designed for live gigs, rallies, and concerts. It features a powerful two-way speaker system with advanced drivers and a robust amplifier, providing exceptional sound clarity and versatility for professional audio applications.
FHE12MA
High-Performance 12-inch Active Stage Monitor for Live Sound Reinforcement
The FHE12MA is a high-performance stage monitor specifically designed for live gigs, rallies, and concerts. It features a powerful two-way speaker system with advanced drivers and a robust amplifier, providing exceptional sound clarity and versatility for professional audio applications.
Performance:
Low-Frequency Driver: 12-inch neodymium magnet with high sensitivity, lightweight design, and low distortion. Constructed from carbon fiber composite pulp for good rigidity and transient response.
High-Frequency Driver: 1.73-inch compression driver with a PEEK diaphragm, offering excellent frequency response and durability. The magnetic circuit structure with a short-circuit ring design reduces harmonic distortion.
Max SPL: 129 dB
Frequency Response: 55Hz-20kHz
Design:
Enclosure: 15mm MDF with a dovetail joint structure for rigidity and pure sound reproduction. Coated with high-hardness granular relief paint.
Grille: Curved high-hardness steel grille with internal acoustic cotton for effective protection.
Dimensions: 604x360x335mm
Weight: 29 kg

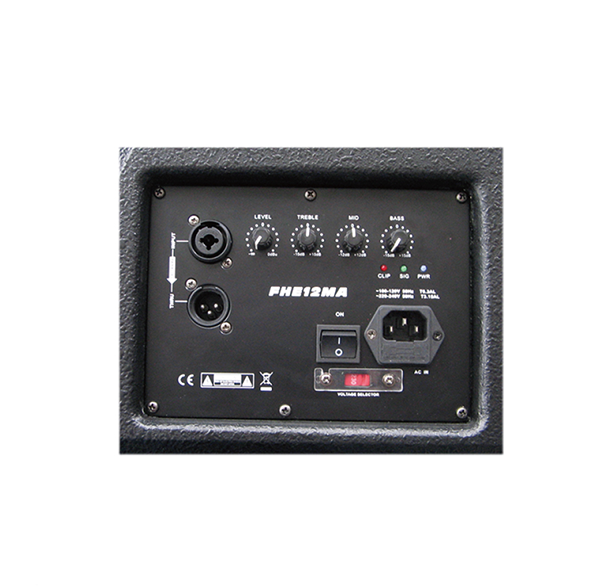

Amplification:
Amplifier Type: Two-way Class-D audio power amplifier.
Power Output: 400W for low-frequency driver, 40W for high-frequency driver.
Equalization: Dual-band equalization knobs for high and low frequencies.
Features:
Built-in 7 M10 steel suspension screw holes for versatile hanging options.
Selectable monitoring angles of 45° and 20° for different stage distances.
Square horn design for adjustable horizontal and vertical coverage angles.
Applications:
Ideal for stage monitoring, live gigs, rallies, and concerts.
Ensures clear soundstage positioning and enhanced audio quality for professional sound reinforcement.
