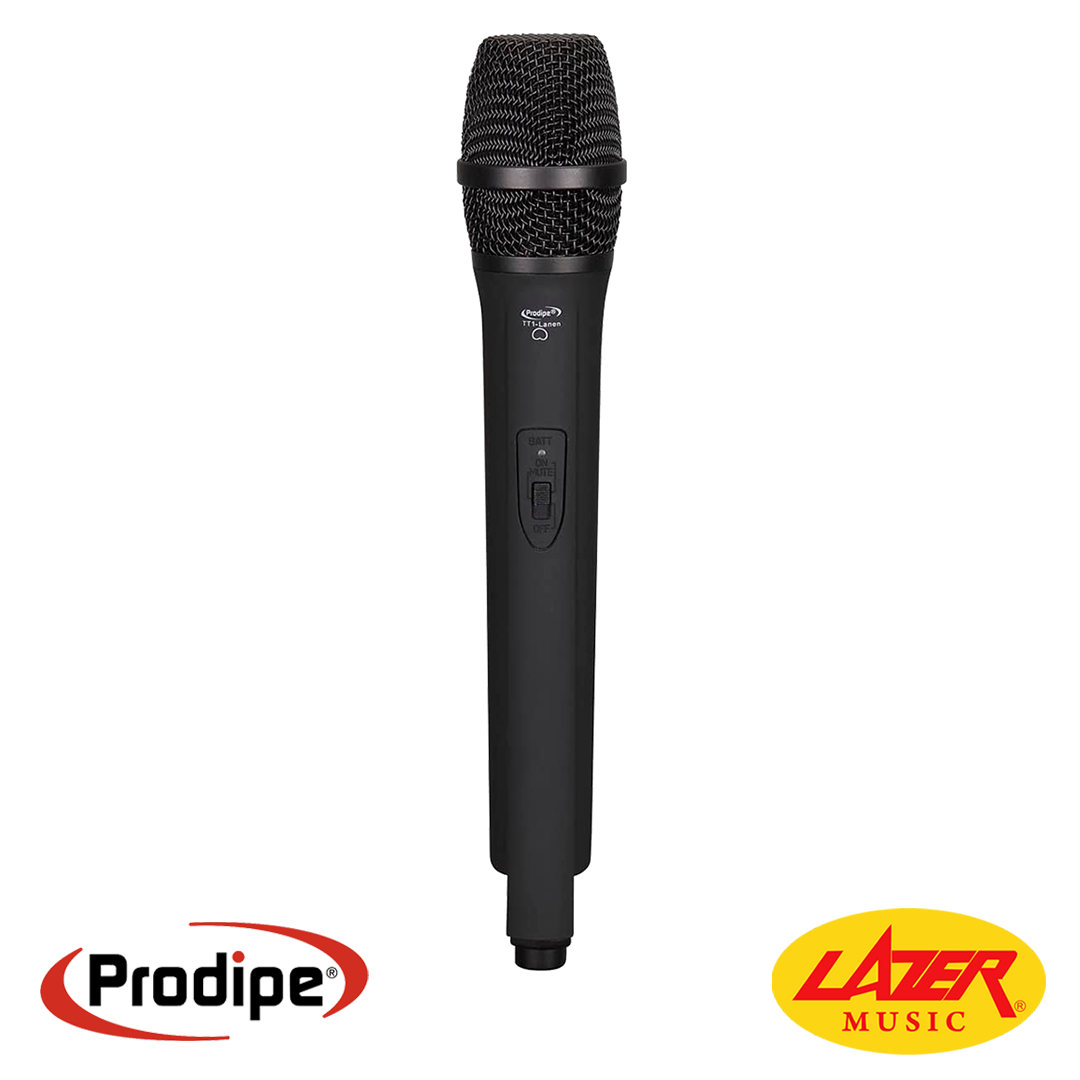

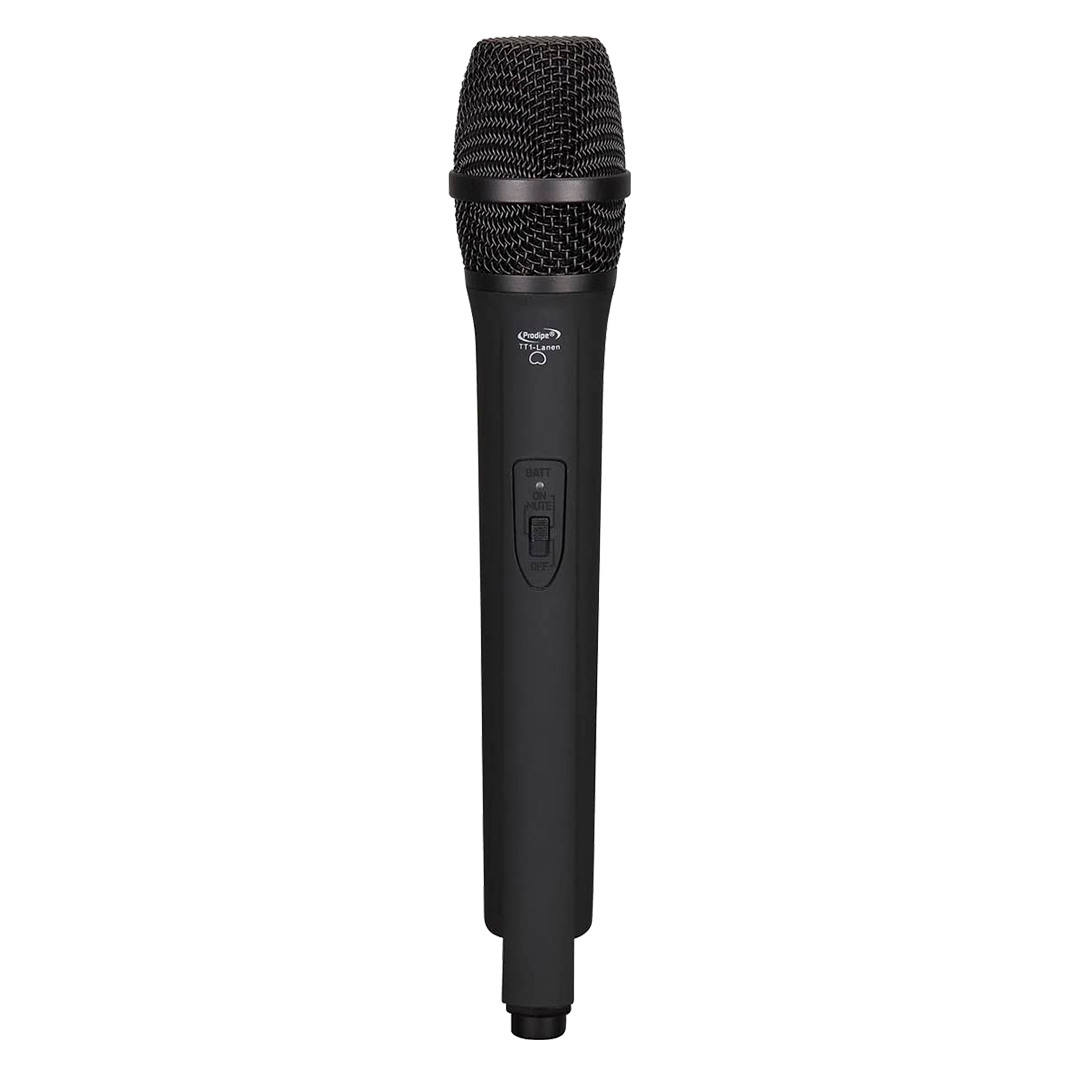

Microphone:
-
Type : dynamic
-
Sensitivity : -49dBV/Pa (2.2mV/Pa)
-
Frequency response : 40-20Khz±3dB
-
Output impedance : 600Ω±30% at 1KHz
-
System:
-
Main fonctions :
-
Frequency range: UHF 710-786 MHz
-
Channel: 100
-
Frequency stabilisation: <±30ppm
-
Dynamic Range: >90dB
-
Total Harmonic Distortion: <0.5%
-
Frequency Response: 40-20Khz±3dB
-
Cover range: 60 M
-
Transmitter:
-
Transmitter power: 10mW
-
Maximum deviation: ±50KHz
-
High harmony: superior at 40dB
-
Battery voltage: AA1.5V×2
-
Battery life: 6h
-
Power Switch Noise: Provide with perfect switch noise deducted circuit
-

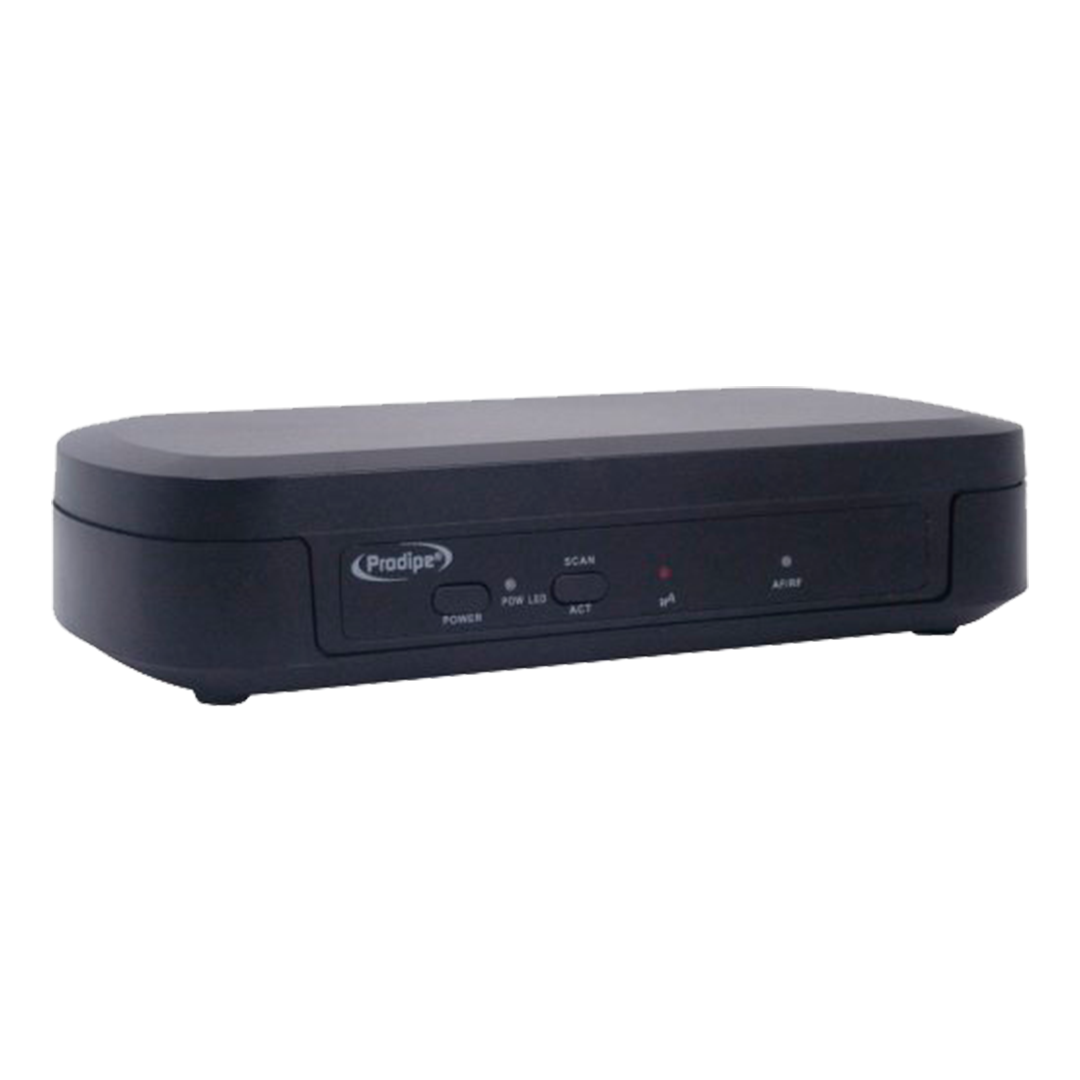

Receiver:
-
Power supply: AC100~240V/ 45-60Hz
-
External: 12V
-
Power Consumption: 5W
-
S/N Ratio: >90dB
-
Ratio P/N or F/N: >80dB
-
Receiving sensitivity: 5dBu (SINAD=20dB)
-
Audio output:
-
Type 0~±500mV Mix
-
Type 0~±300mV
-
