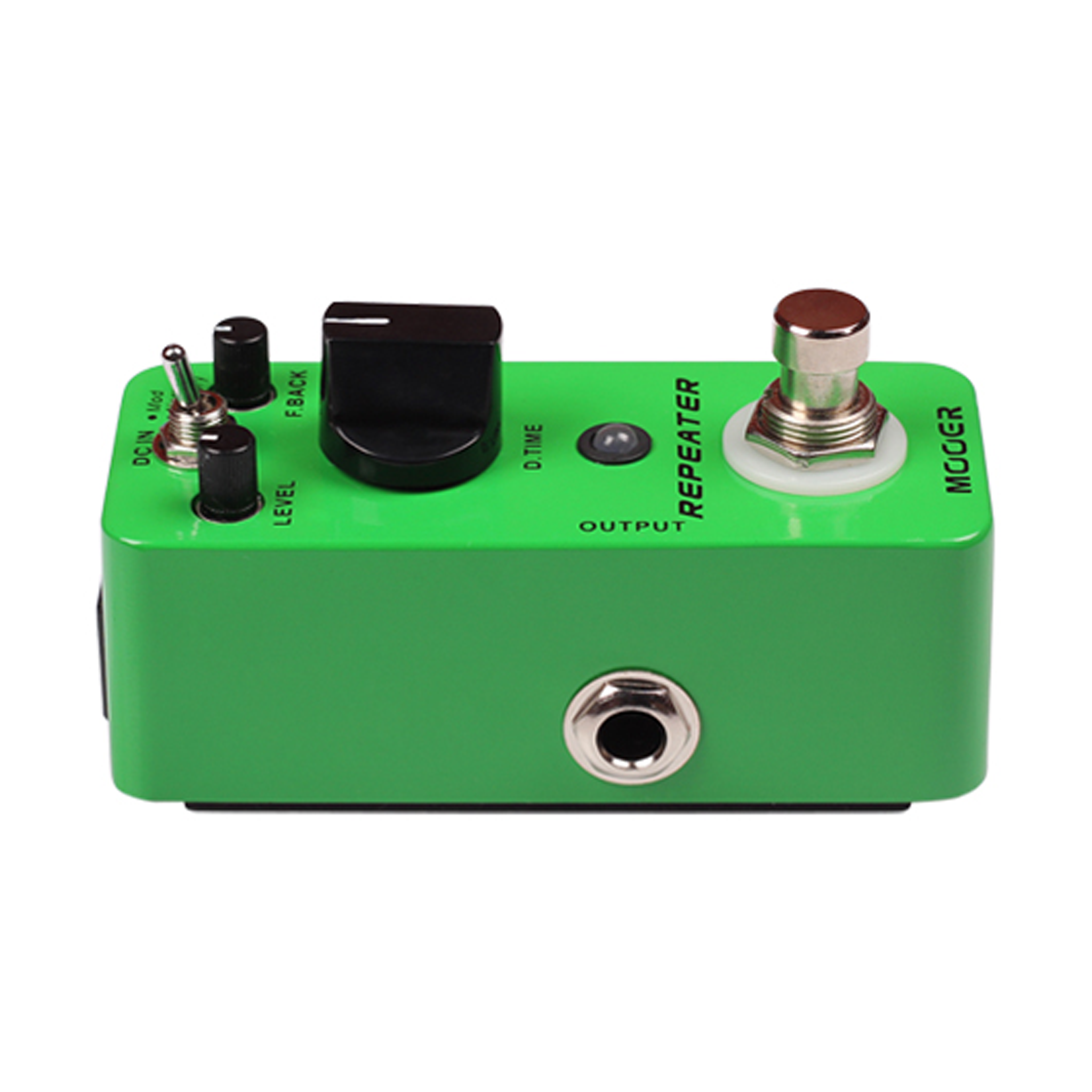

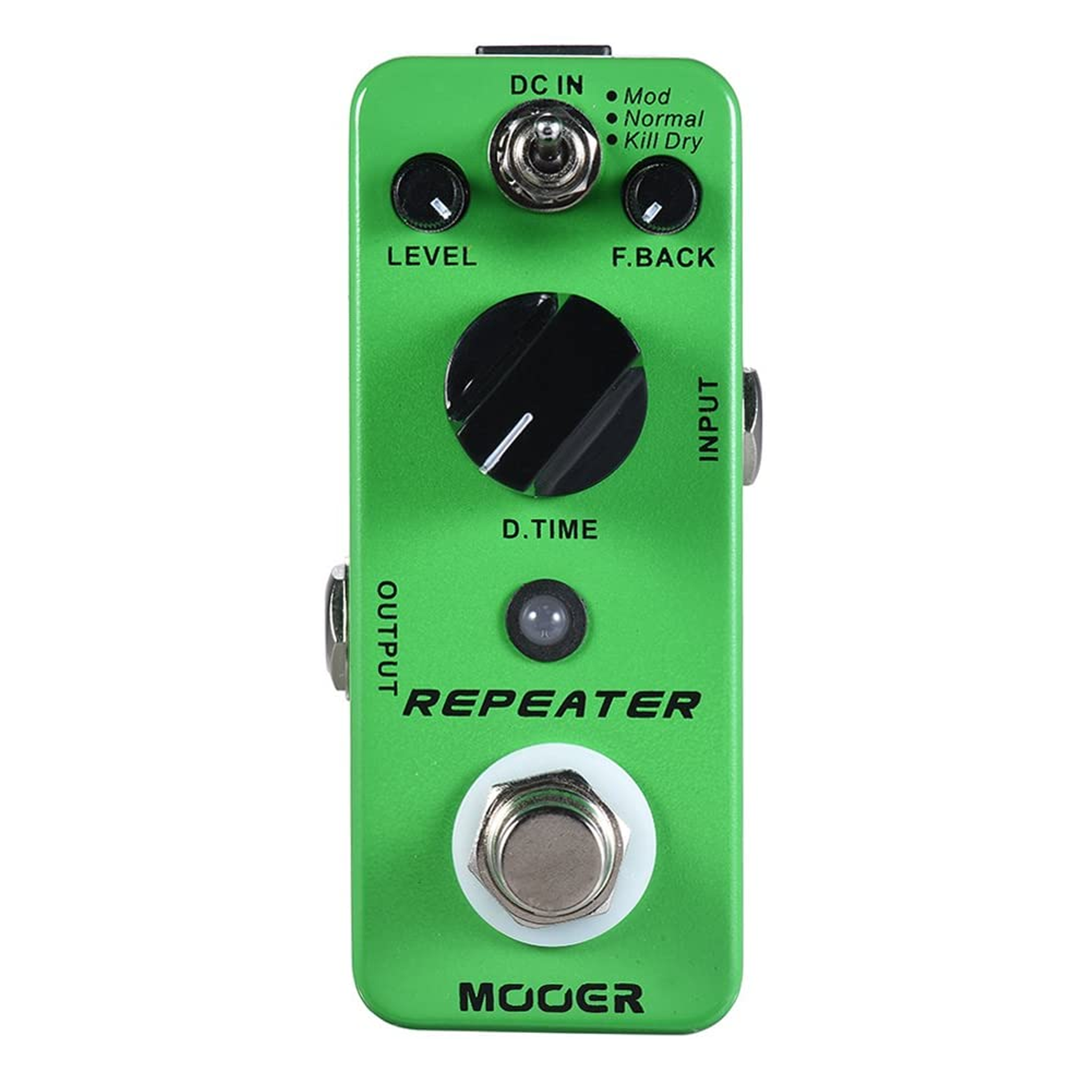

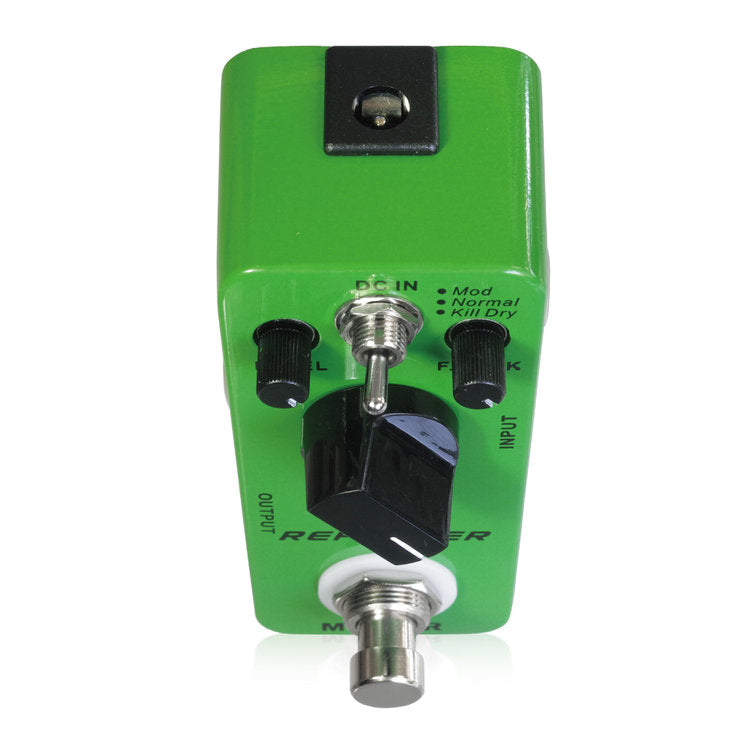

Mooer REPEATER Digital Delay Effects Pedal
RepeaterRepeater has a toggle switch to Mod/Normal/ KillDry's unique digital delay pedal with 3 modes.
You can set the delay time from 25 to 1000ms to create clear delay sounds.
Since it is a true bypass specification, there is no need to worry about the tone changing when bypassing.
The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.
Features
・Digital delay with 3 types of modes to choose from
・Equipped with Kill Dry that can also be used in parallel effects loop
・Full metal housing
・Ultra small, compact design
・True bypass
・Powered by standard DC9V adapter
Mod/Normal/KillDry
・Mod: Creates a delay with added chorus-like vibrations.
-Normal: Normal delay mode. A clear and natural tone typical of digital delay.
・Kill Dry: Cuts the dry signal and outputs only the delay sound. Recommended for use when connected to an amplifier's parallel effects loop.
Controls
・LEVEL: Adjust the volume of the delay sound.
・F.BACK: Adjust delay feedback.
・D.TIME: Adjust the delay time between 25 and 1000ms.
・Mod/Normal/KillDry switch: Switch the mode.
Specification
Input | 1/4” monaural jack (impedance: 470k Ohms) |
Output | 1/4” mono audio jack(Impedance: 100 Ohms) |
Power Requirements | AC adapter 9V DC (center minus plug) |
Current Draw | 128mA |
Dimensions | 93.5mm(D) x 42mm(W) x 52mm(H) |
Weight | 160g |
