Mooer ECHOLIZER Digital Delay Effects Pedal
Echolizer is a delay that reproduces the warm texture of the delay characteristic of classic analog delay effects. It's a pedal.
The delay time can be freely set within the range of 25ms to 600ms.
Because of its naturalness, it is recommended not only for clean tones, but also for use with distortion and other effects.
The Echolizer is true bypass, so you don't have to worry about the tone changing when bypassed.
The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.
Features
・Warm delay sound that reproduces the characteristics of analog delay
・Full metal housing
・Ultra small, compact design
・True bypass
・Powered by standard DC9V adapter

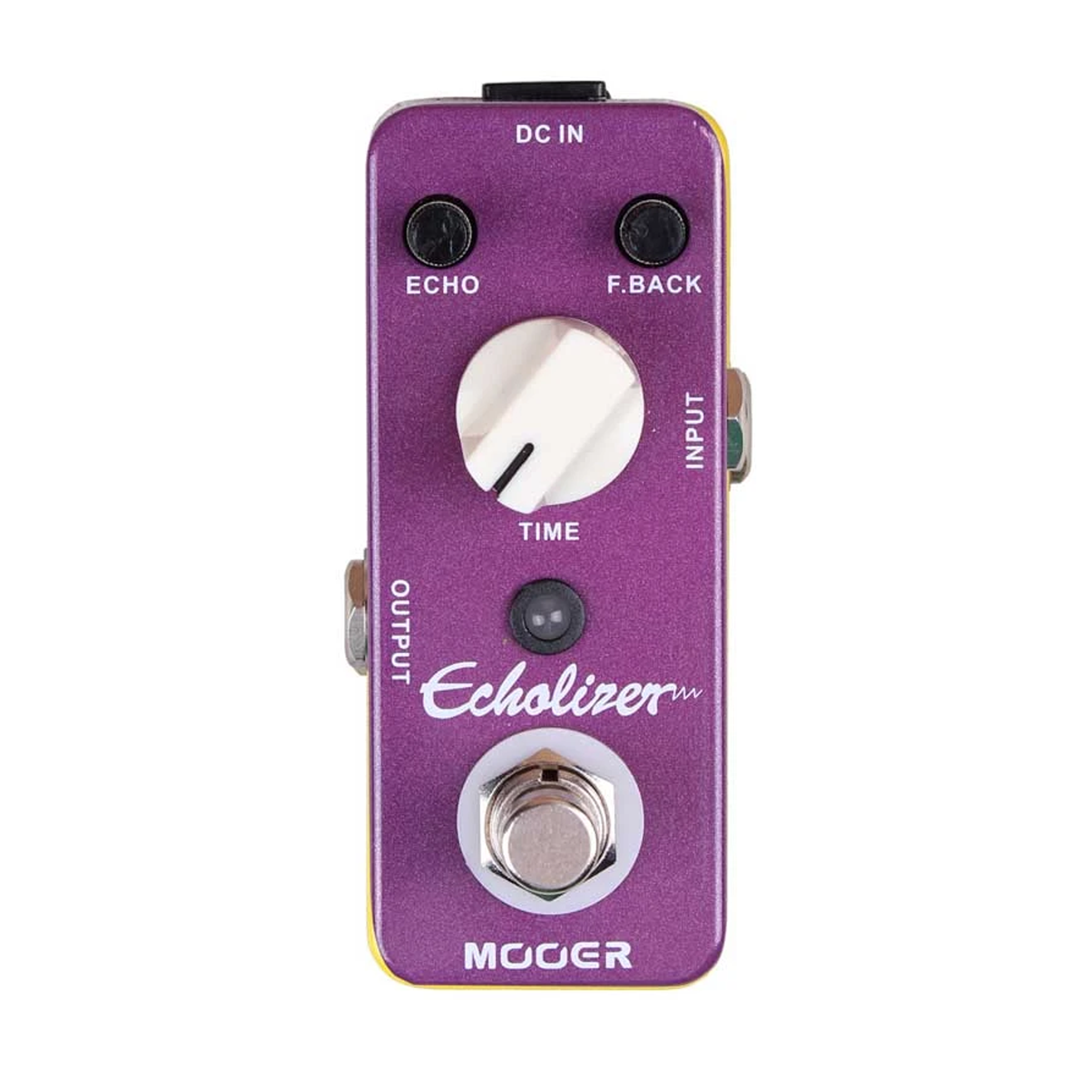

Controls
・ECHO: Adjusts the volume of the delay sound.
・F.BACK: Adjust delay feedback.
・TIME: Adjust the delay time in the range of 25 to 600ms.
Specification
| Modes | Delay and reverb effects with tap tempo functionality. |
| Input | 1/4” mono audio jack.（Impedance: 1 meg Ohms） |
| Output | 1/4” mono audio jack（Impedance: 470 Ohms) |
| Power Requirements | AC adapter 9V DC (center minus plug) |
| Current Draw | 40mA |
| Dimensions | 93.5mm(D) x 42mm(W) x 52mm(H) |
| Weight | 160g |
