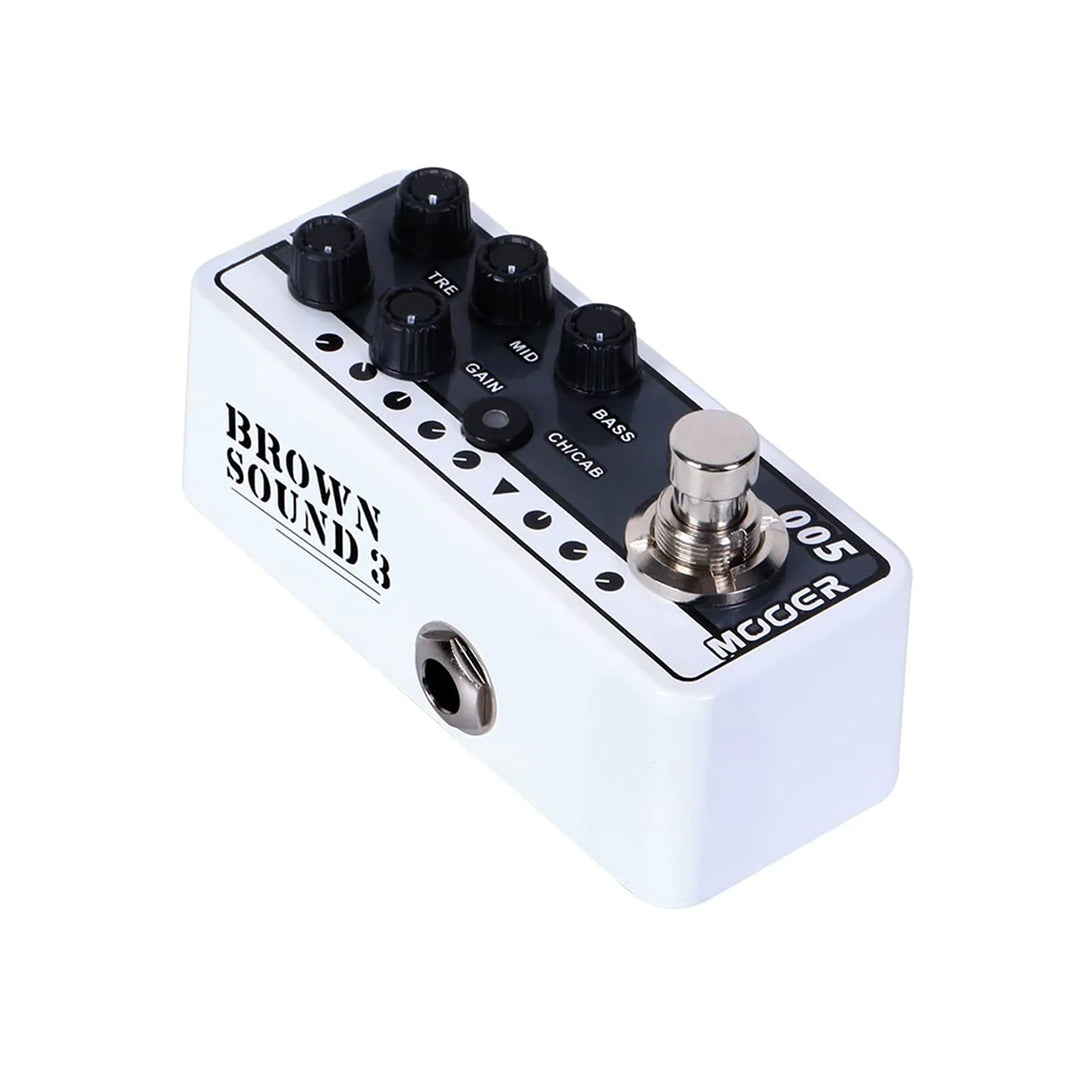

Brown Sound 3 Micro Preamp Pedal Specifications:
-
DCIN: Connect a DC 9V 300mA centre pin negative power supply
-
INPUT: Connect your instrument directly or the output of your pre, pre-amp effects like Overdrive, distortion, etc.
-
OUTPUT: Connect to a power amp or your amplifier’s effects return. (Highly recommend using a tube amplifier)
-
Different power amplifiers will affect the outcome of the final tone. You can also connect directly to a sound card and activate the speaker cab simulation for recording purposes
-
Note: You can connect your effects loop effects, such as modulation and time based effects, in between the MOOER preamps output and the input of the power amp (FX return)
-
Modes: Delay and reverb effects with tap tempo functionality.
-
Input: 1/4” mono audio jack. (Impedance: 1 meg Ohms）
-
Output: 1/4” mono audio jack (Impedance: 100 Ohms）
-
Power requirements: AC adapter 9V DC , center negative. (Highly recommend to use Mooer Micro Power.）
-
Current Draw: 300mA
-
Dimensions: 3.68" x 1.65" x 2.04" (93.5mm x 42mm x 52mm)
-
Weight: 0.35 lb. (160g)
