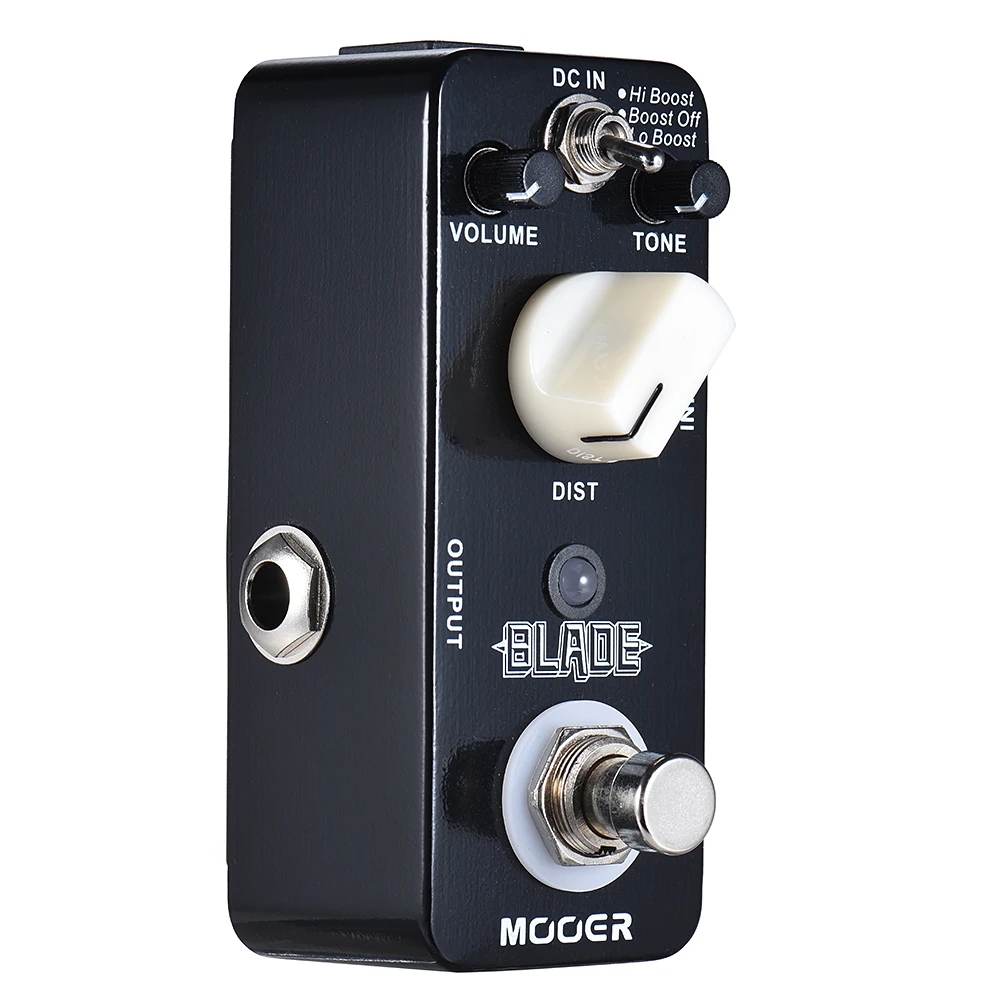

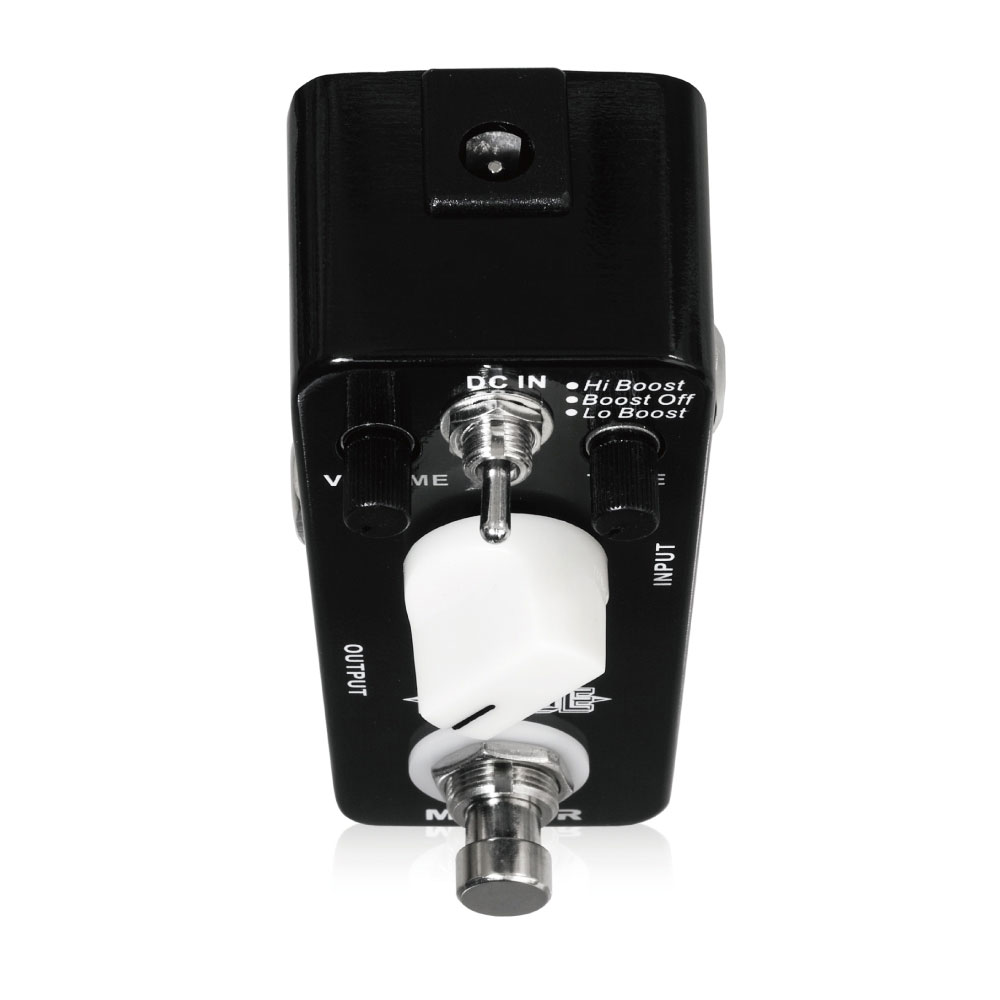

Mooer BLADE Heavy Metal Distortion Pedal
3 modes of sound in a mini-sized housing This is a metal distortion pedal equipped with.
Three types of boost modes allow you to choose the texture and texture of the distortion.
Since it is a true bypass specification, there is no need to worry about the tone changing when bypassing.
The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.
Features
・High gain distortion that operates in 3 modes
・Full metal housing
・Ultra small, compact design
・True bypass
・Powered by standard DC9V adapter
Hi Boost/Boost Off/Lo Boost
・Lo Boost: Slightly boosts high frequency range To do.
・Boost Off: Turn off boost.
・Hi Boost: Creates high-gain distortion by adding a strong boost.
Control
VOLUME: Adjust the overall volume.
DIST: Adjust the strength of distortion.
TONE: Adjust the brightness of the tone.
Hi Boost/Boost Off/Lo Boost switch: Select the boost mode added to distortion.
Specification
Input | 1/4 inch monaural audio jack (impedance: 1MΩ) |
Output | 1/4 inch monaural audio jack (impedance: 470Ω) |
Power Requirements | Regulated center negative DC9V adapter (batteries cannot be used) |
Current Draw | 20mA |
Dimensions | 93.5mm (D) x 42mm (W) x 52mm (H) |
Weight | 160g |
Line Output | 4.7k Ohms Level 0dBu |
Signal to Noise | Greater than 80dB (EQ Flat) |
