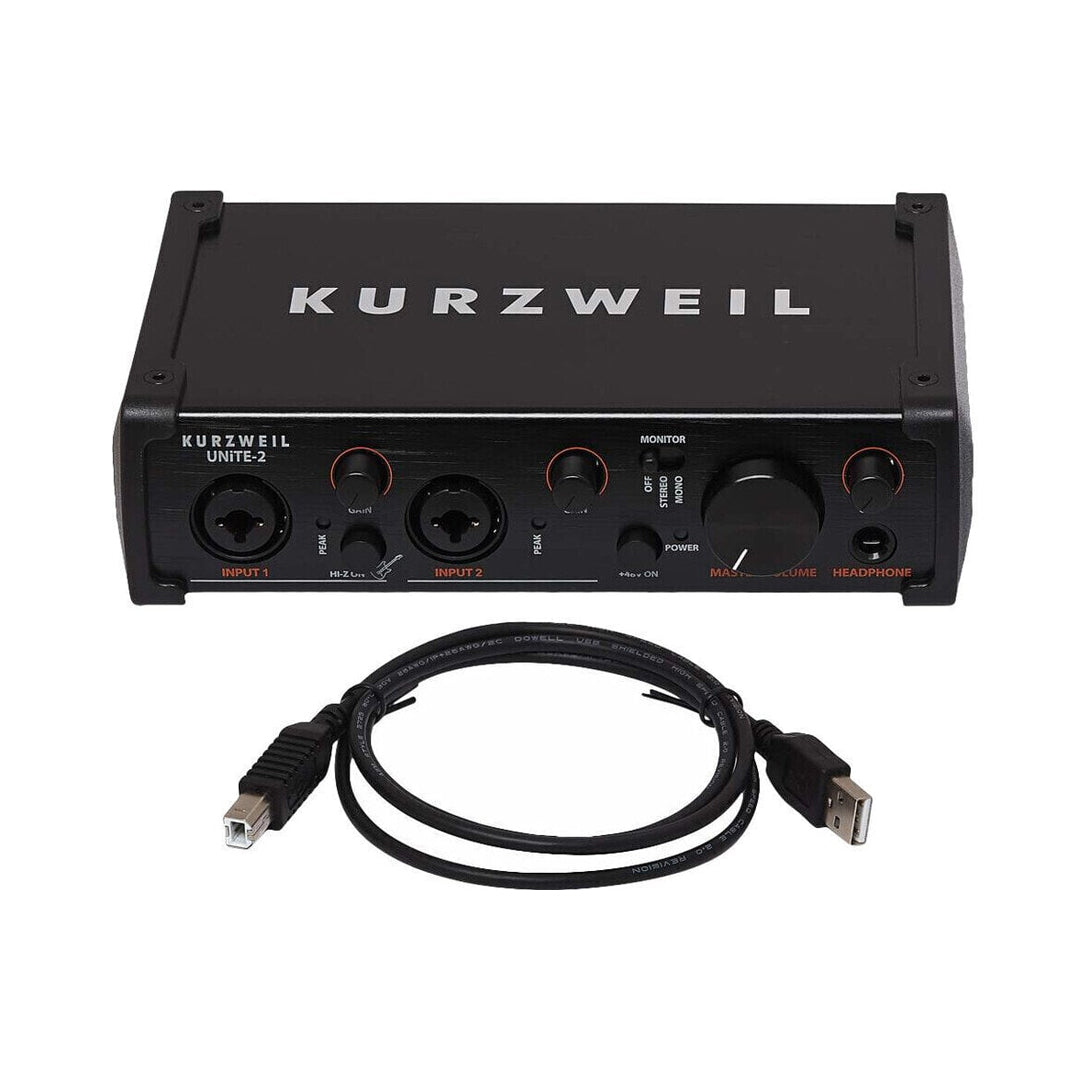

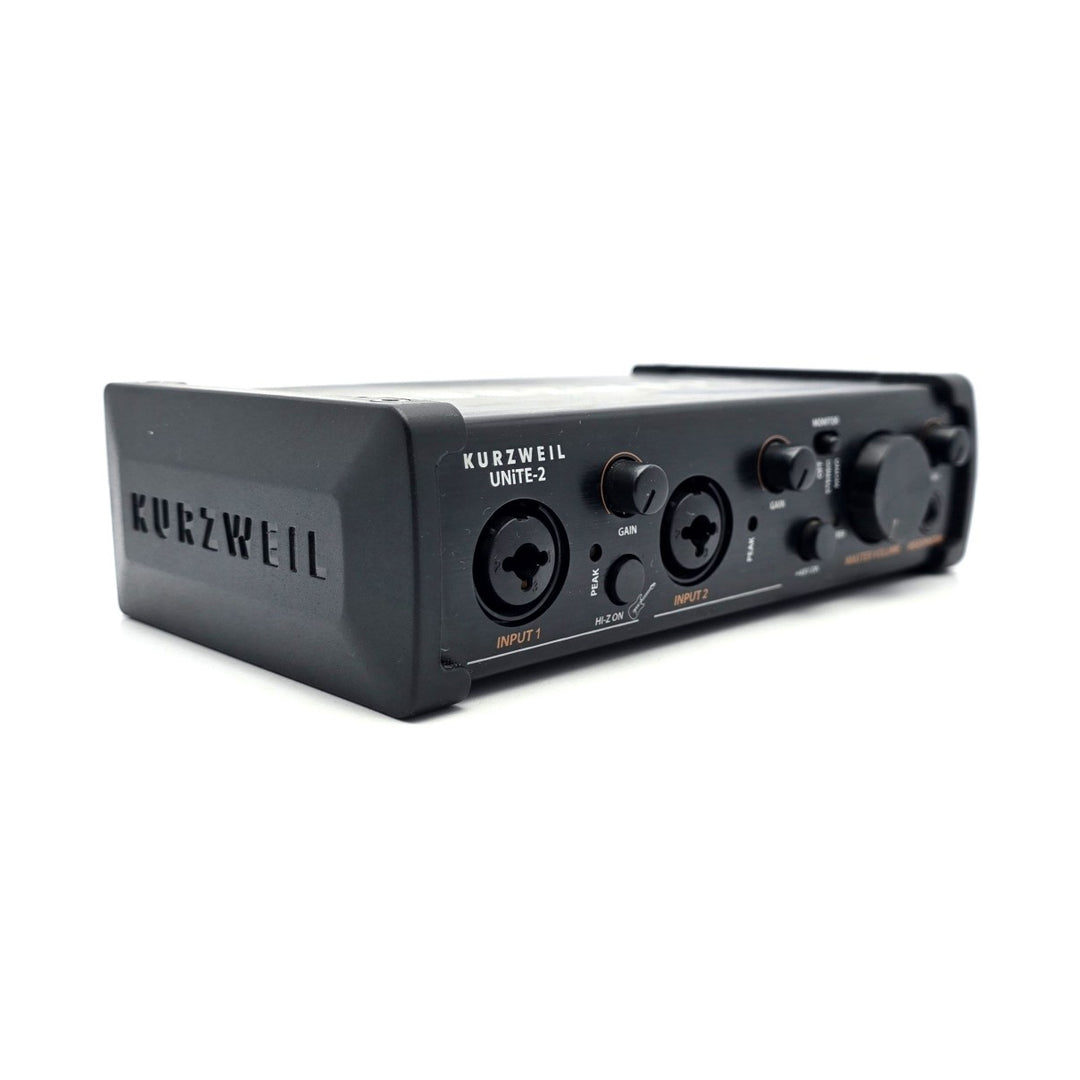

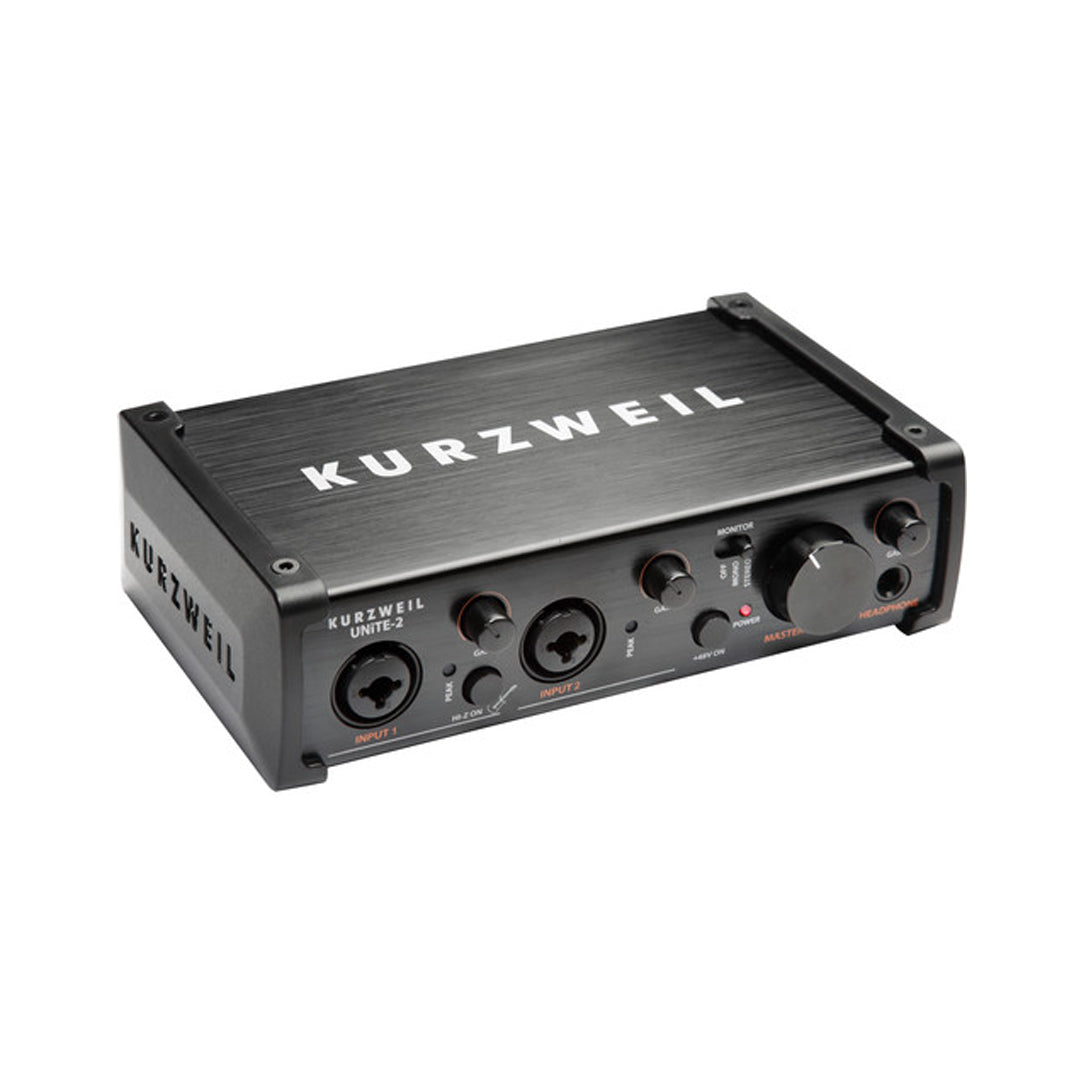

Kurzweil Unite 2 Two-Channel USB 2.0 Audio Interface

The UNiTE-2 Two-Channel USB 2.0 Audio Interface from Kurzweil is a two input, two output interface with +48V phantom power support and one switchable Hi-Z instrument input. When paired with an optional microphone (sold separately), the audio interface can be used to capture audio for Mac or Windows computers using the included Bitwig Studio 8-Track software or the DAW host software of your own.

GET IN

Two combo microphone/line inputs (with +48V phantom power support) and 1 switchable Hi-Z instrument input.

GET OUT

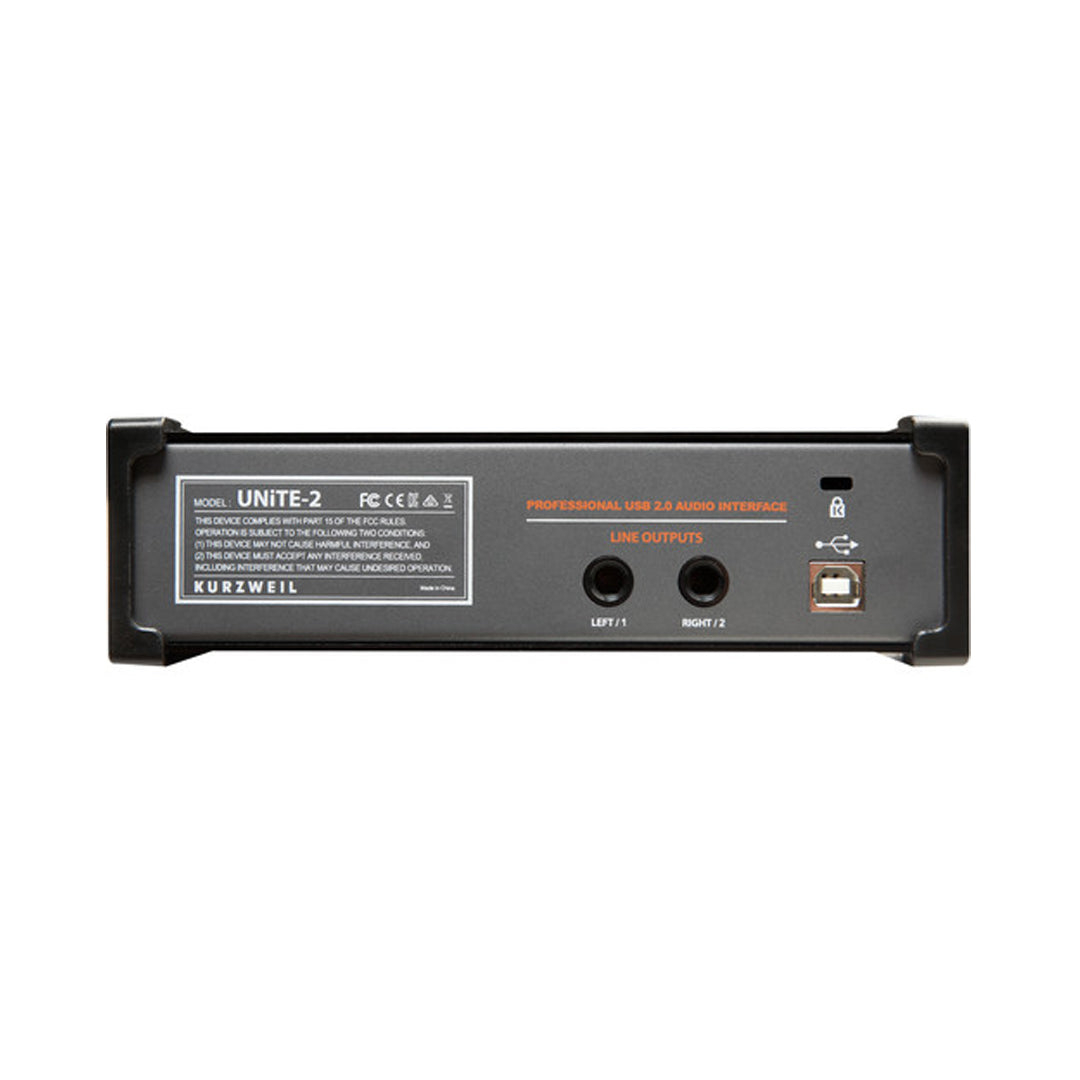

Individual L/R outputs via balanced 1/4″ TRS connectors. Front panel headphone output with stereo 1/4″ connector.

MAKE THE CONVERSION

24-bit / 96kHz AD/DA converters.

USB

Bus-powered, full speed USB 2.0. No external power connection required.

CONTROLS

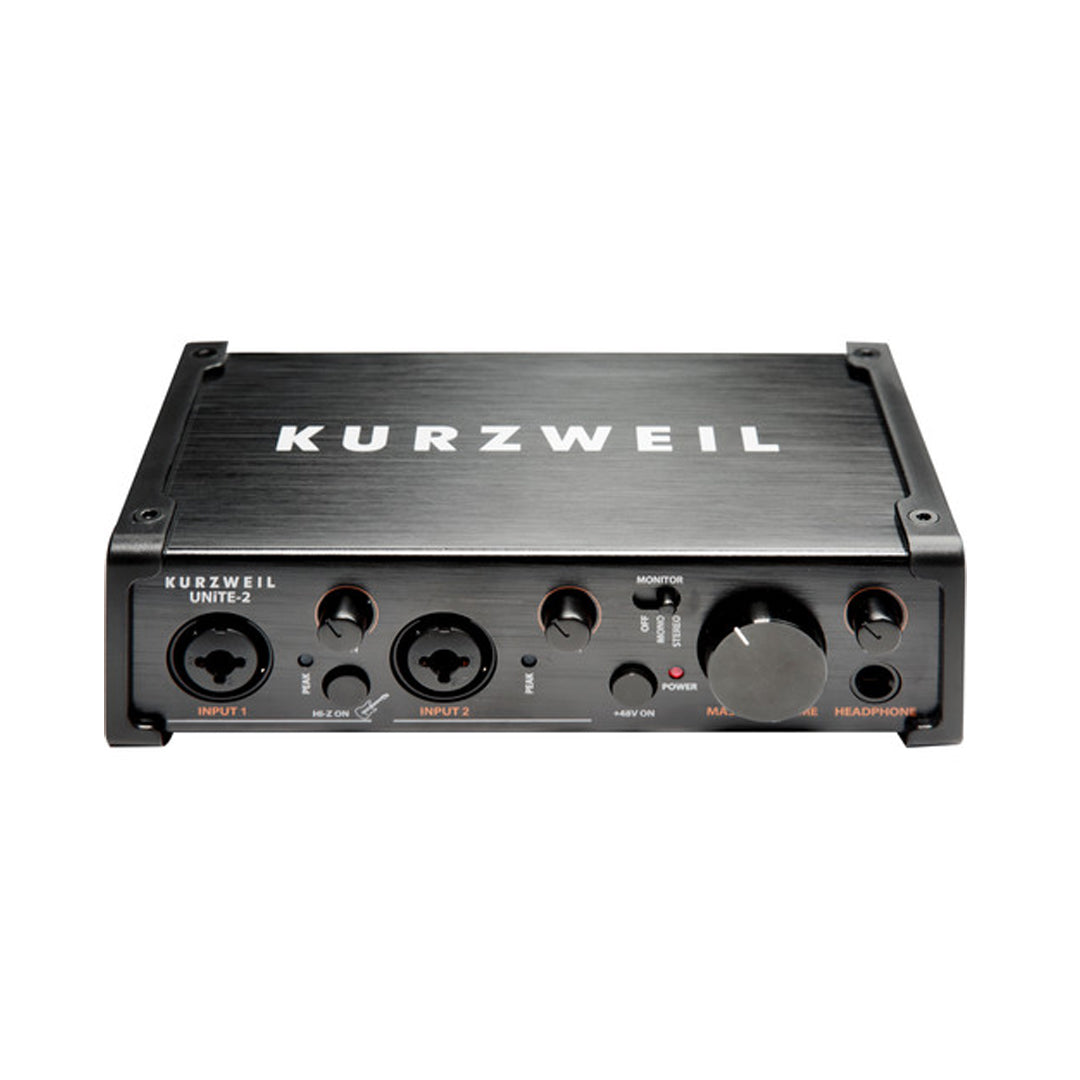

Intuitive and convenient front panel controls for channel input gain (with peak indicators), monitor, phantom power on/off, headphone and master volume.

COMPATIBILITY

Cross-platform compatibility for Windows (7, 8.1, 10 with ASIO 2.0, MMe, WDM and DirectSound), Mac OSX* (10.7 and above via the native CoreAudio USB Audio driver)
(*no driver install required)

BITWIG STUDIO-8 INCLUDED!

Bitwig Studio 8-Track is the sketch pad for your musical ideas.

Specifications

All specifications subject to change without notice.

Inputs:	2 combo XLR-1/4″ microphone/line inputs 1 switchable Hi-Z instrument input
Outputs:	2 balanced 1/4” TRS 1 1/4″ headphone output
Phantom Power (+48V):	Yes
USB:	2.0, bus powered
Front Panel Controls:	channel input gain, peak LED, phantom power, input monitoring, headphone and master volume
Compatibility:	-Windows 7, 8.1, 10 (ASIO 2.0, MMe, WDM, DirectSound) -Mac OS X 10.7 (and above) via CoreAudio (no driver install required)
A/D/A Conversion:	24bit / 96kHz (max)
ADC Dynamic Range:	102dBA@48kHz, SNR = 102dBA @48kHz
DAC Dynamic Range:	108dBA@48kHz, SNR = 108dBA @48kHz
