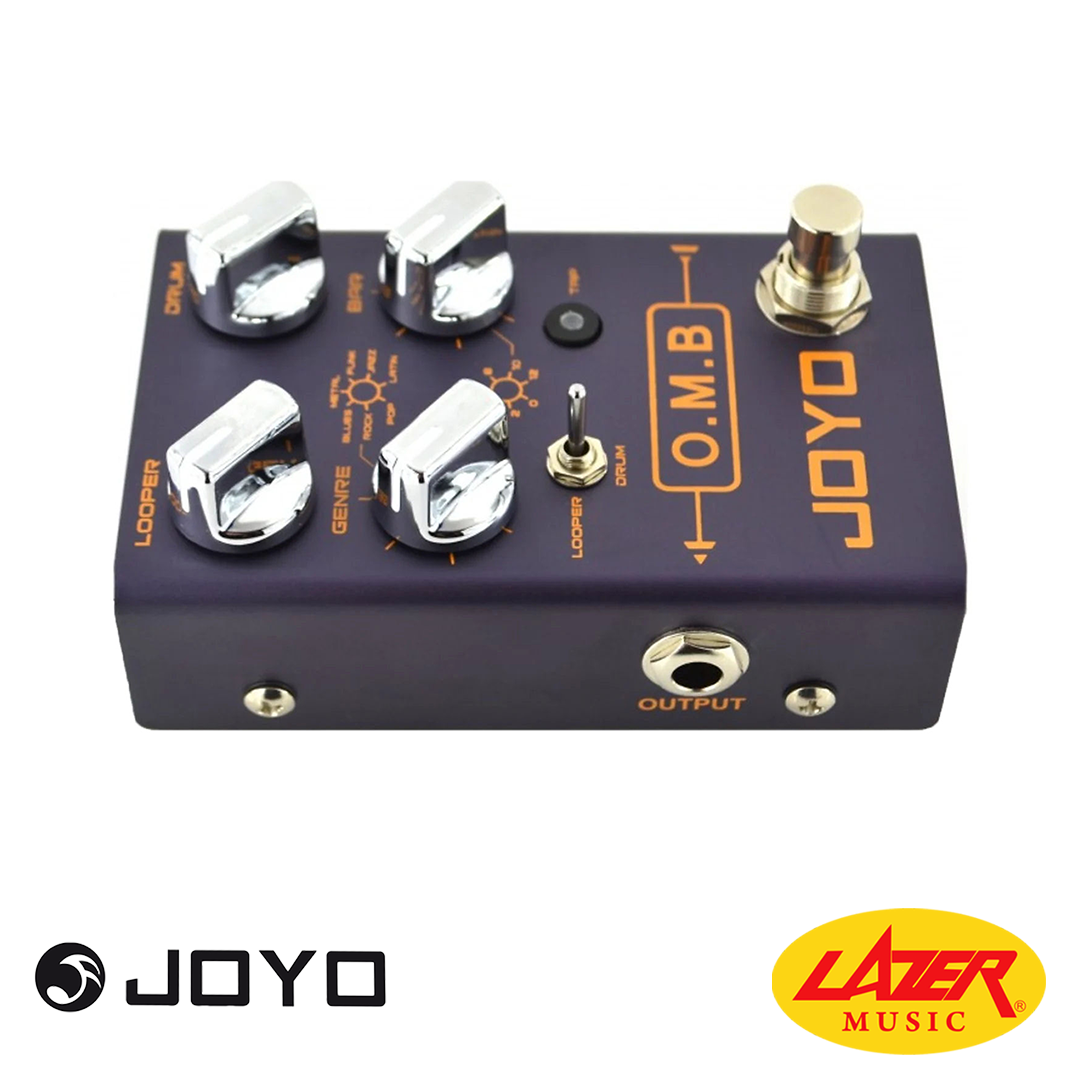

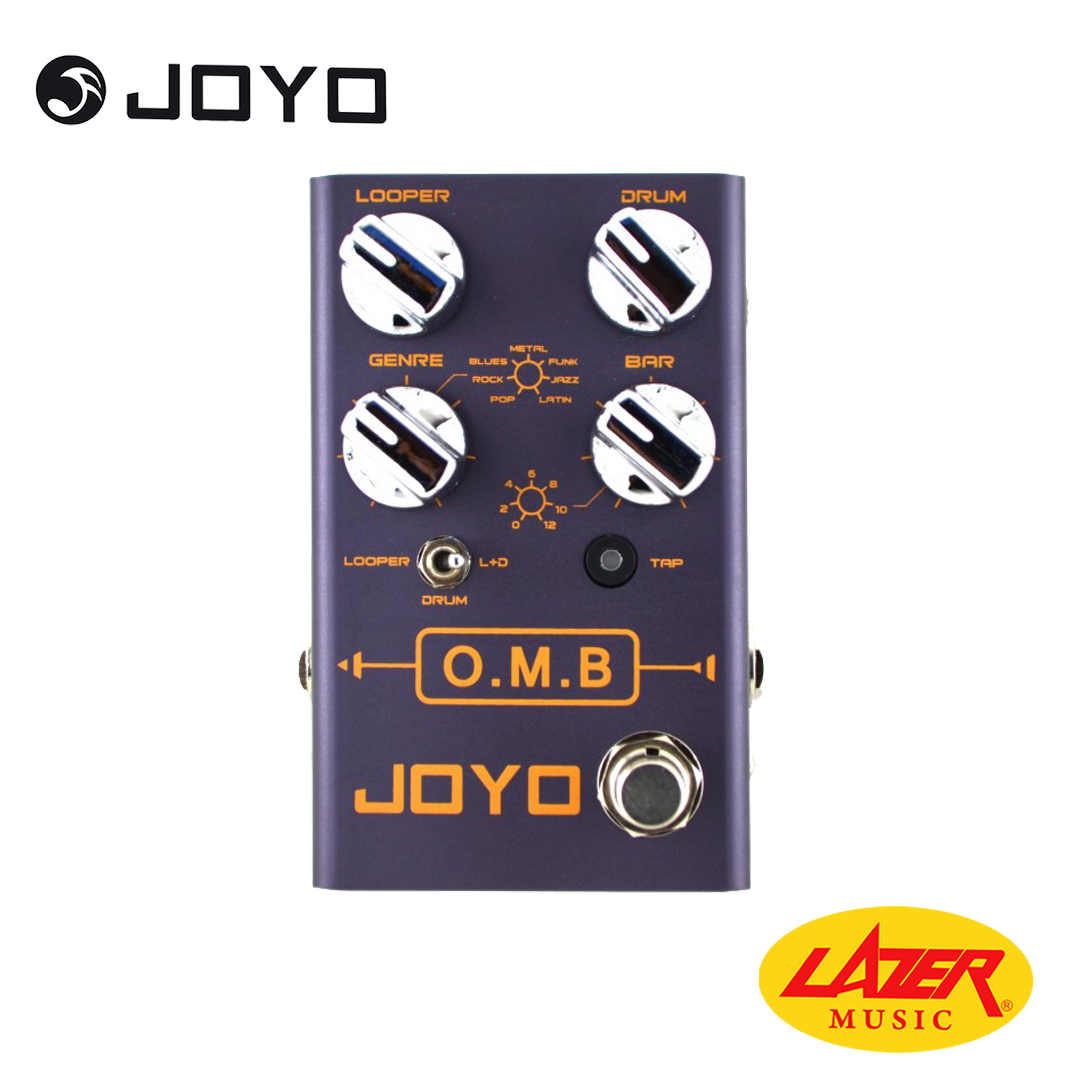

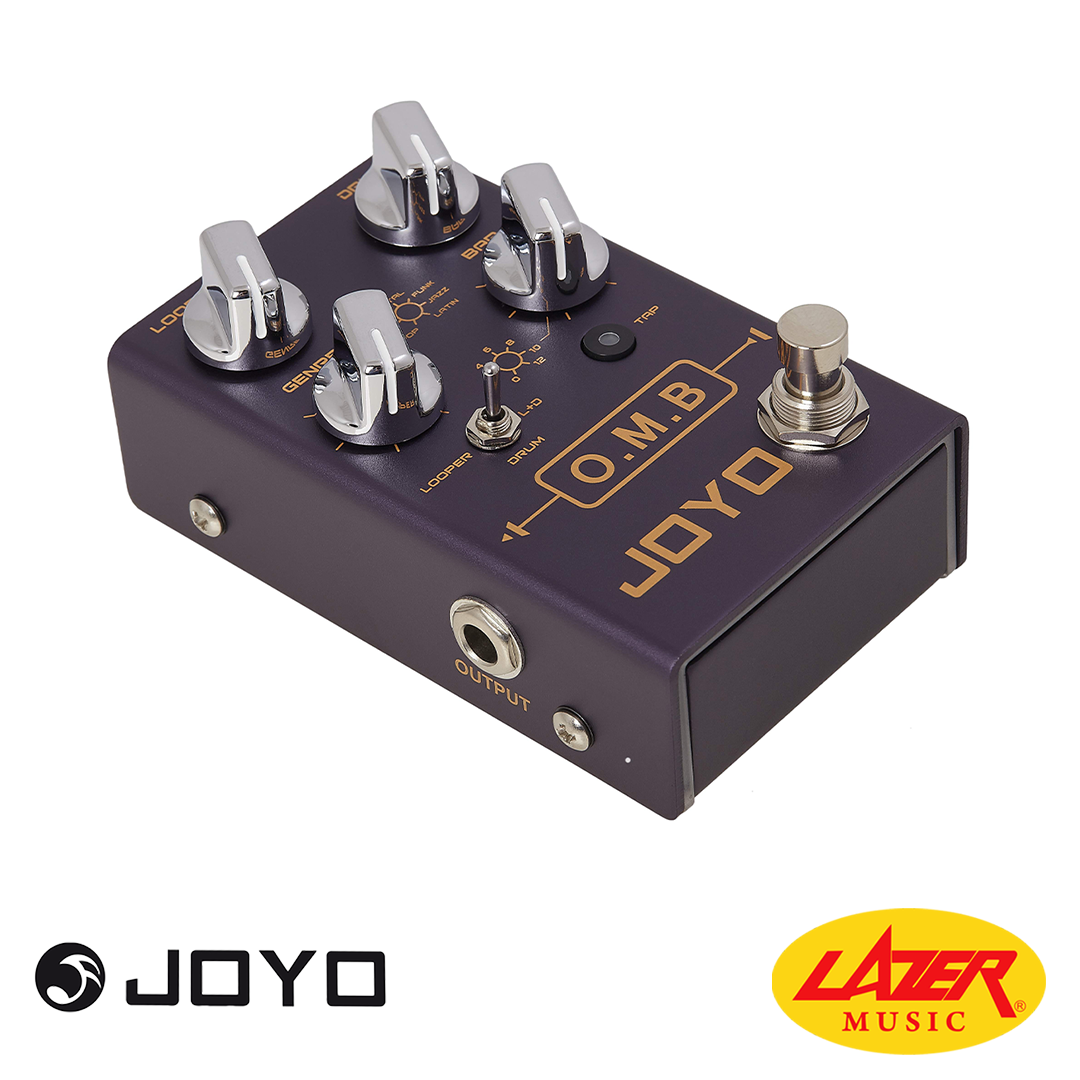

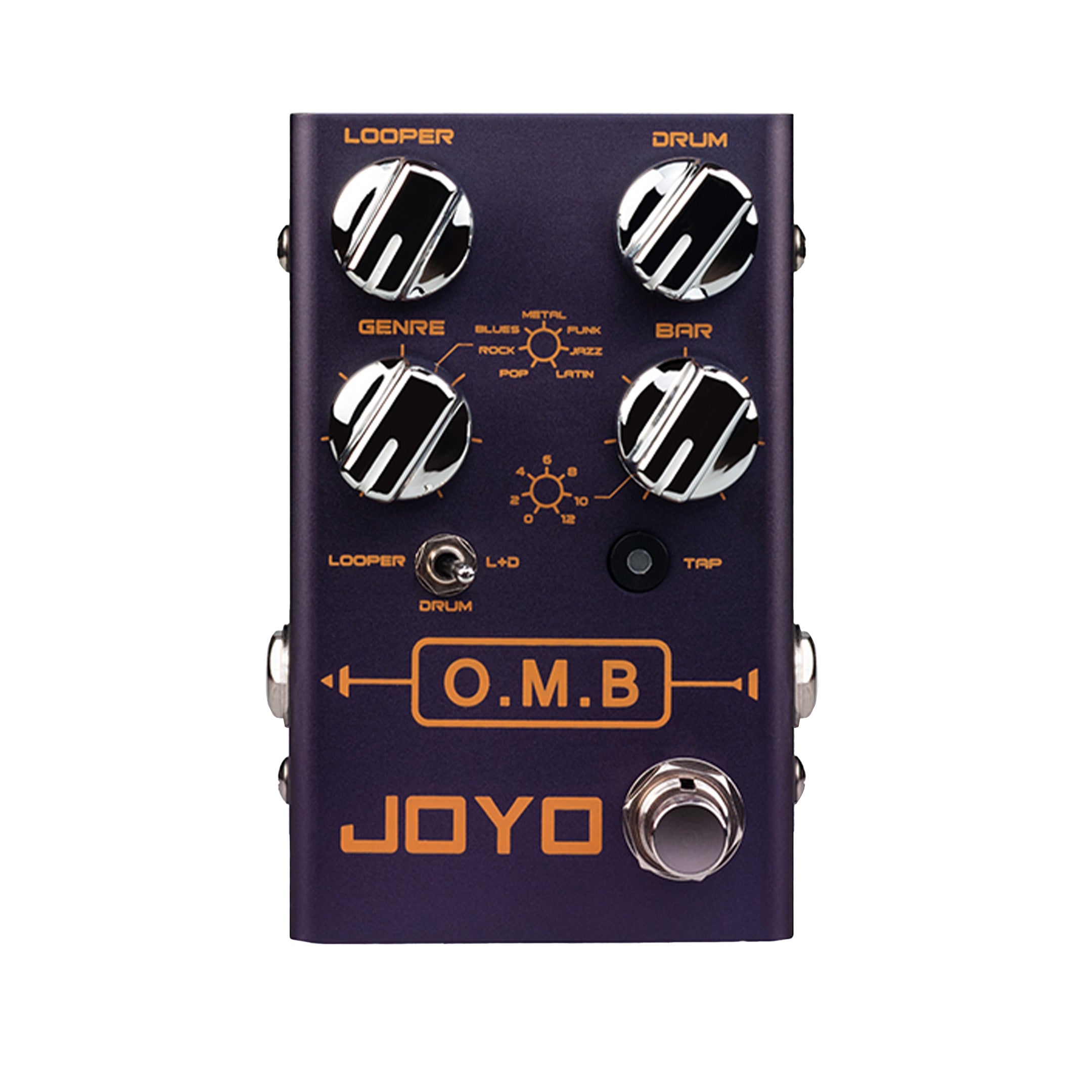

JOYO R-06 OMB Looper and Drum Machine
A pedal features LOOPER cycle recording mode, independent drum machine mode, and LOOPER +drum mode. The LOOPER mode has auto-align function and Count-In function, 40 minutes cycle recording time, overdub unlimitedly. In drum machine mode, you can choose 7 genres of drum pattern and 7 drumbeats, the speed of drum patterns can be set up by TAP TEMPO button. What’s more, O.M.B enables you to add fills, outro fill can be added at the end of each drum pattern, so just try your One Man Band to your heart’s content.
Controllers: Looper, Drum, GENRE selector, BAR selector, Mode switcher, TAP, LED ToggleWith no battery compartment
Effects Pedal Looper Volume, drum Volume, Drum Genre, Drum Pattern, Mode selection Looper/Drum or Looper & Drum.
LED Effect indicator - On when the footswitch & pedal are active.
Footswitch
DC input on the rear.
Specifications
| Effect types | Looper + Drum machine |
| Effect numbers | 7 Genre + 7 Bar |
| Controls | Looper, Drum, Genre, Bar, Feature toggle, Tap tempo |
| Footswitchs | 1 |
| Input Jack | 6.35mm |
| Output Jack | 6.35mm |
| Input Impedance | 2.2MΩ |
| Output Impedance | 100Ω |
| Rated current consumption | 150mA |
| Working Voltage | DC 9V (center minus) |
| Signal Bypass Type | Bypass |
| LED Mod | Sync, Always, Off |
| Battery powered | No |
| Dimensions | 109*67*48 mm |
| Weight | 248g |
