Product Description:

R-05 MAXIMUM

Two fabulous overdrive tones are created by the dual channel, the Drive channel features pure and clean overdrive tone without compression. While Boost Channel delivers wild overdrive effect and long sustain by its independent BOOST Control Knob. Moreover, it also has 2 toggle switches, the left one for adjusting the brightness of Mid-frequency, 3 positions are available. And the right one for switching between different circuit clippings, say, MOSFET clipper mode and diode clipper mode respectively.

Controllers: Tone, Gain, Boost, Volume, Tone Mode Switcher, MOSFET/Diode Mode switcher, LED Toggle
With no battery compartment

Features:
The pedal features controls for Volume, Gain, Tone & Boost.
Mosfet / Diode Clip toggle switch.
Hard / Flat / Smooth Clip Mode

LED Effect indicator - On when the footswitch & pedal are active
Footswitch

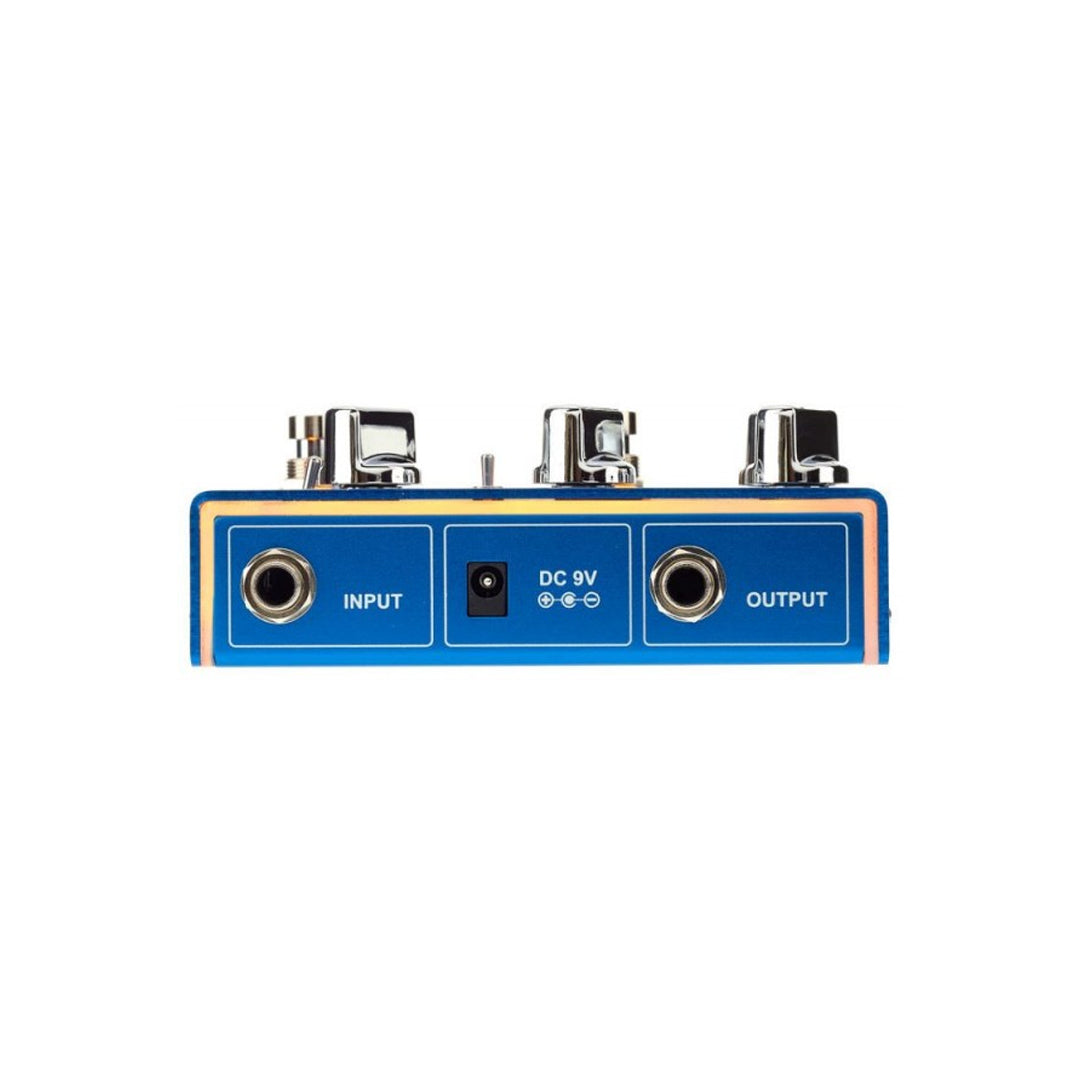

DC input on the rear.

Specifications:
Dimensions : 125mm x 78.5mm x 48mm
Weight : 388g
Input Impedance :1M
Output Impedance : 100
Rated current : 30mA
Voltage : 9v Centre Negative power supply (rear mount)
Input / Output : Rear Mounted
