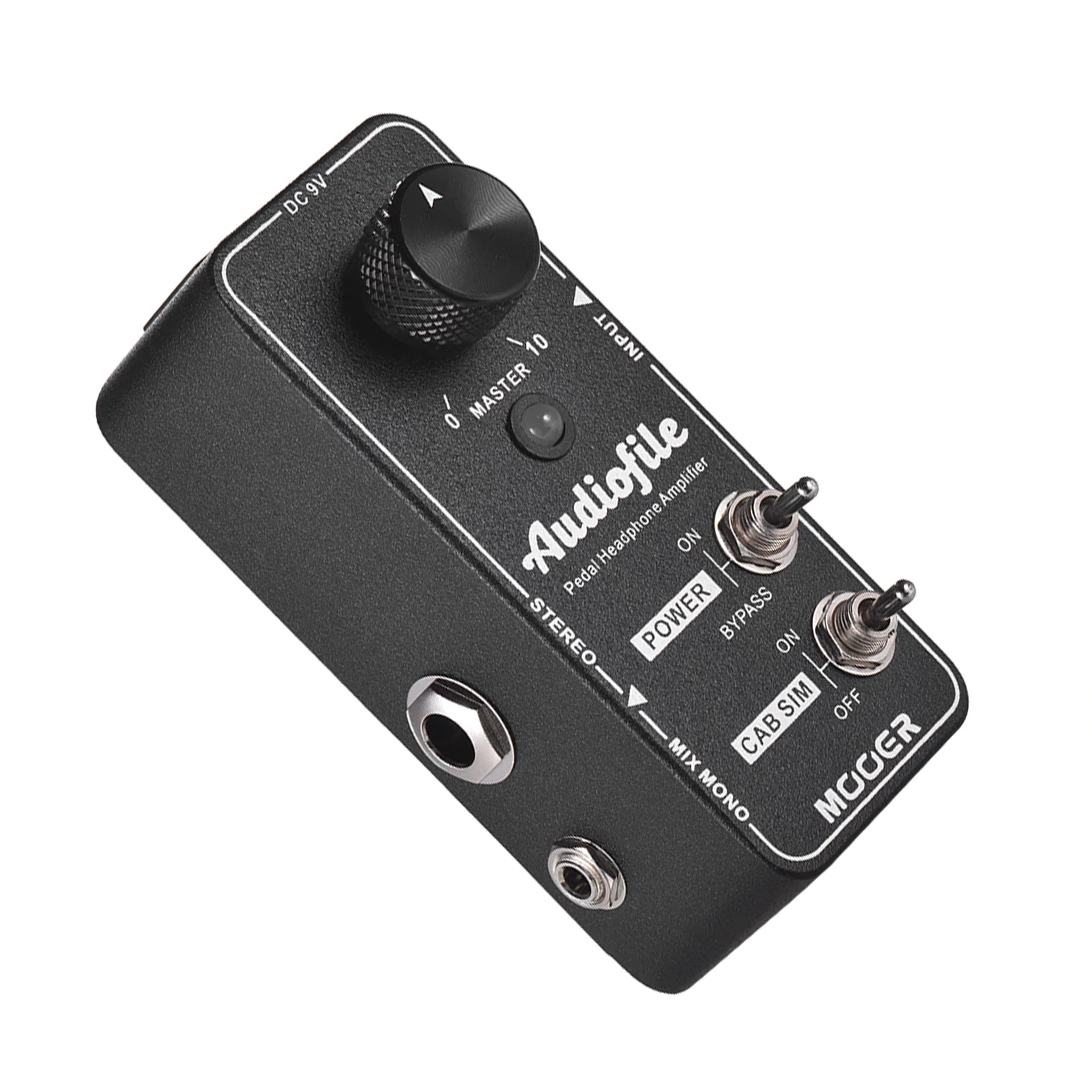

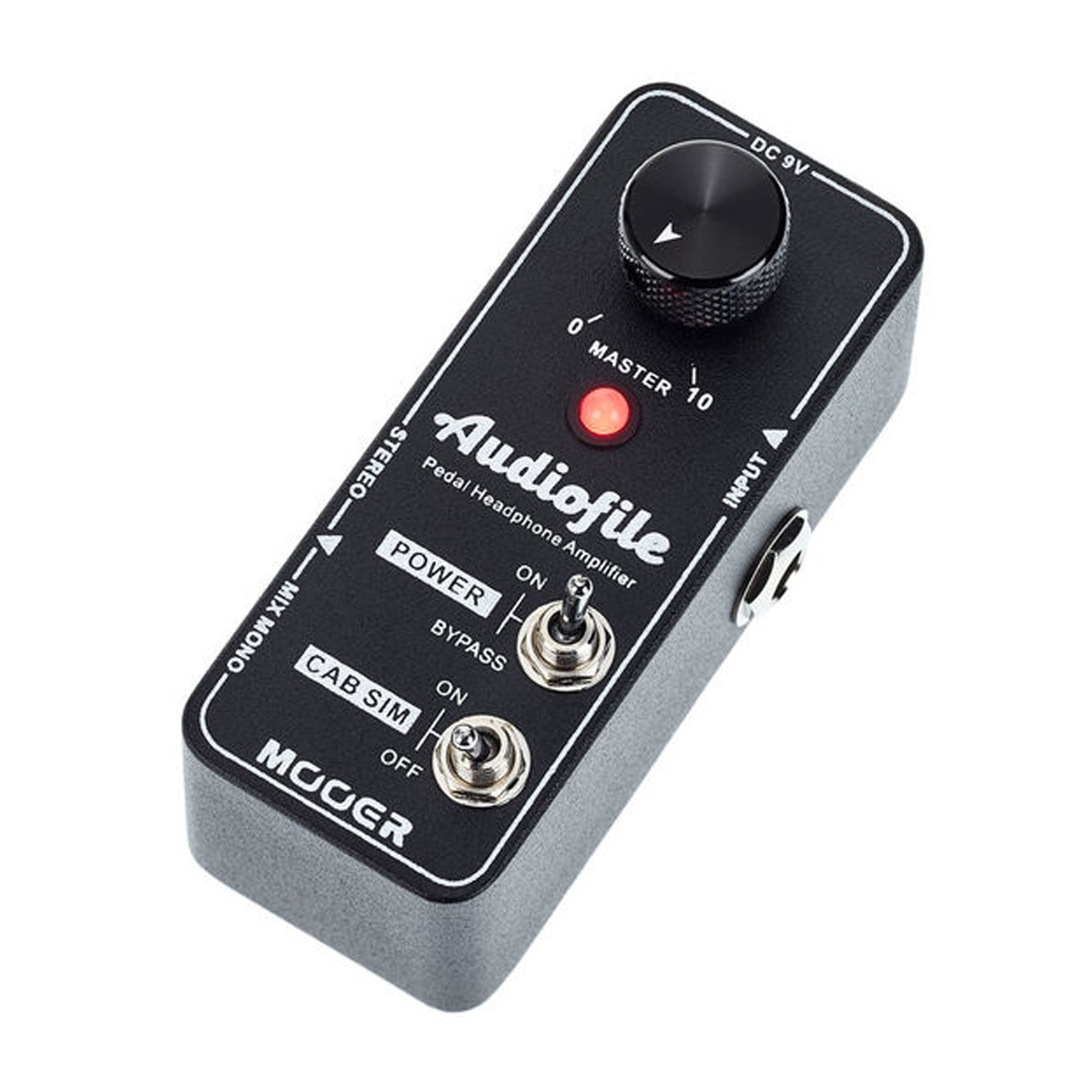

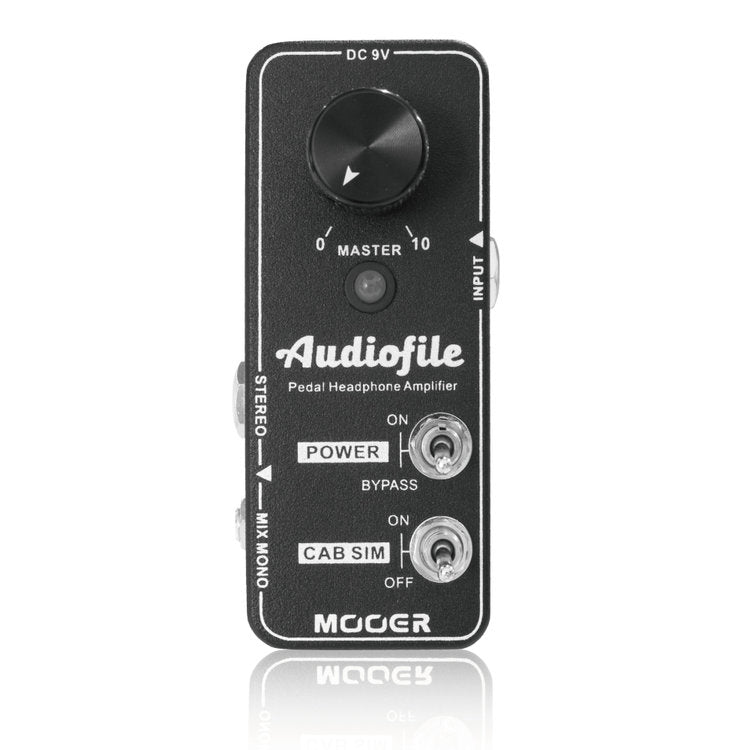

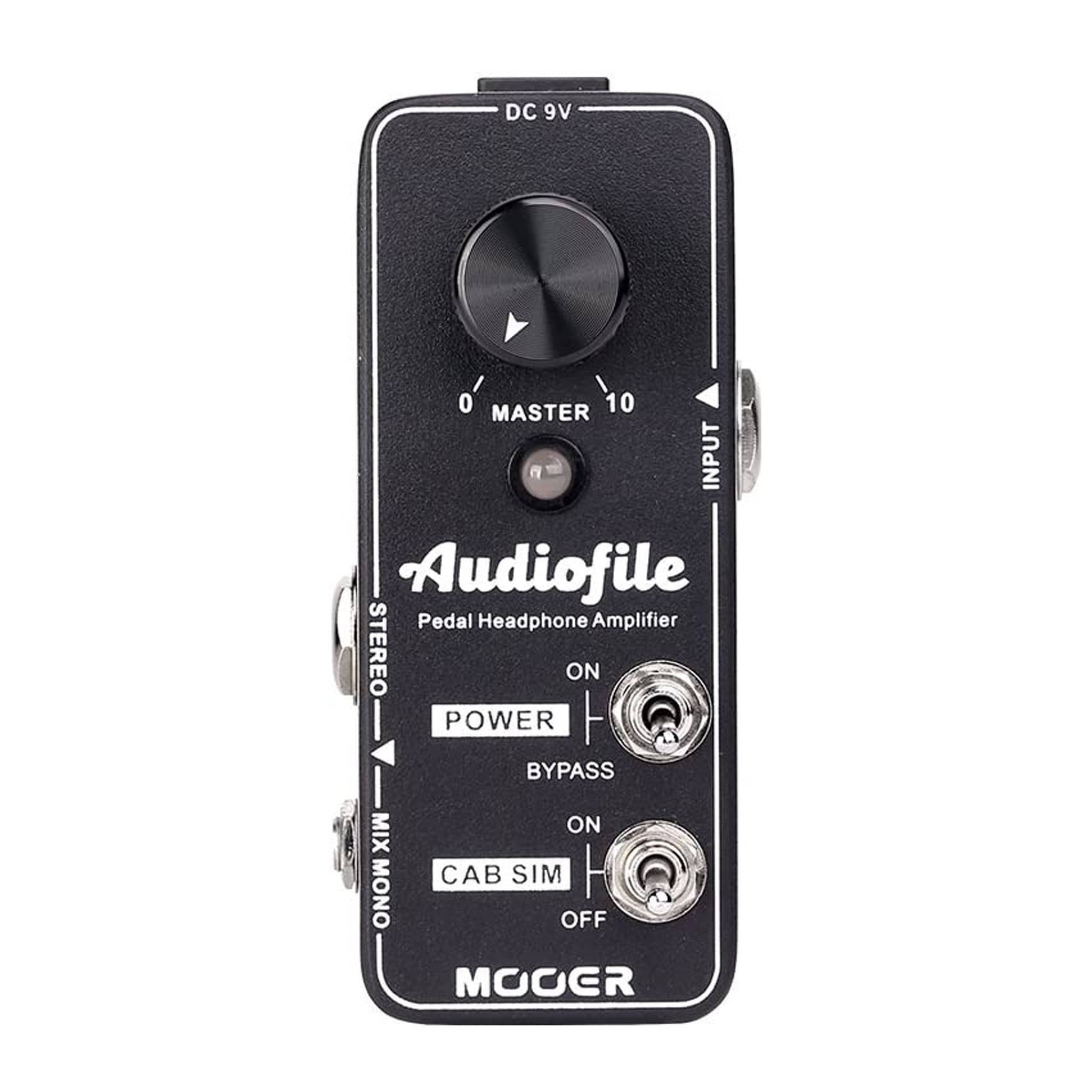

Mooer AUDIOFILE Pedal Headphone Amplifier
Audiofile is a high quality headphone amplifier/buffer pedal for pedal boards made with analog circuits. is. The class A amplifier circuit provides high quality sound and is perfect for practicing at home with just a pedal board.
Built-in analog cabinet simulator allows you to create realistic guitar tones using just an effector and Audiofile.
You can also completely bypass the headphone amplifier on stage or in the studio. If you turn off the cabinet simulator, it also works as a high quality buffer/booster.
A headphone amplifier with clear, warm, and wide dynamics.
Features
・Headphone amplifier for use with guitar and bass pedal boards
・Analog class A circuit ensures warmth and dynamics levels
・Stereo, monaural input, stereo, mixed monaural output
・Built-in analog speaker cabinet
・Booster, buffer pedal
- True bypass switching
- Micro-sized metal housing
Connection example
Audiofile is a headphone amplifier designed to be used by guitarists and bassists by installing it on their pedal boards . Compatible with various connections
Use headphones
Connect the headphones and turn on the power. Using a pedal board, you will be able to practice without making any sounds. If you turn on the analog cabinet simulator, you can hear a realistic and dynamic response as if it were connected to an amplifier.
Specification
Input | 1/4"audio jack. Stereo or Mono (impedance 2.2M) |
Output | 1/4"audio jack. Stereo or mono 1/8" audio jack stereo (impedance 24Ω) |
Power Supply | 9V DC power supply |
Working Current | 50mA |
Dimensions | 93.5mm (D) x 42mm (W) x 52mm (H) |
Weight | 150g |
