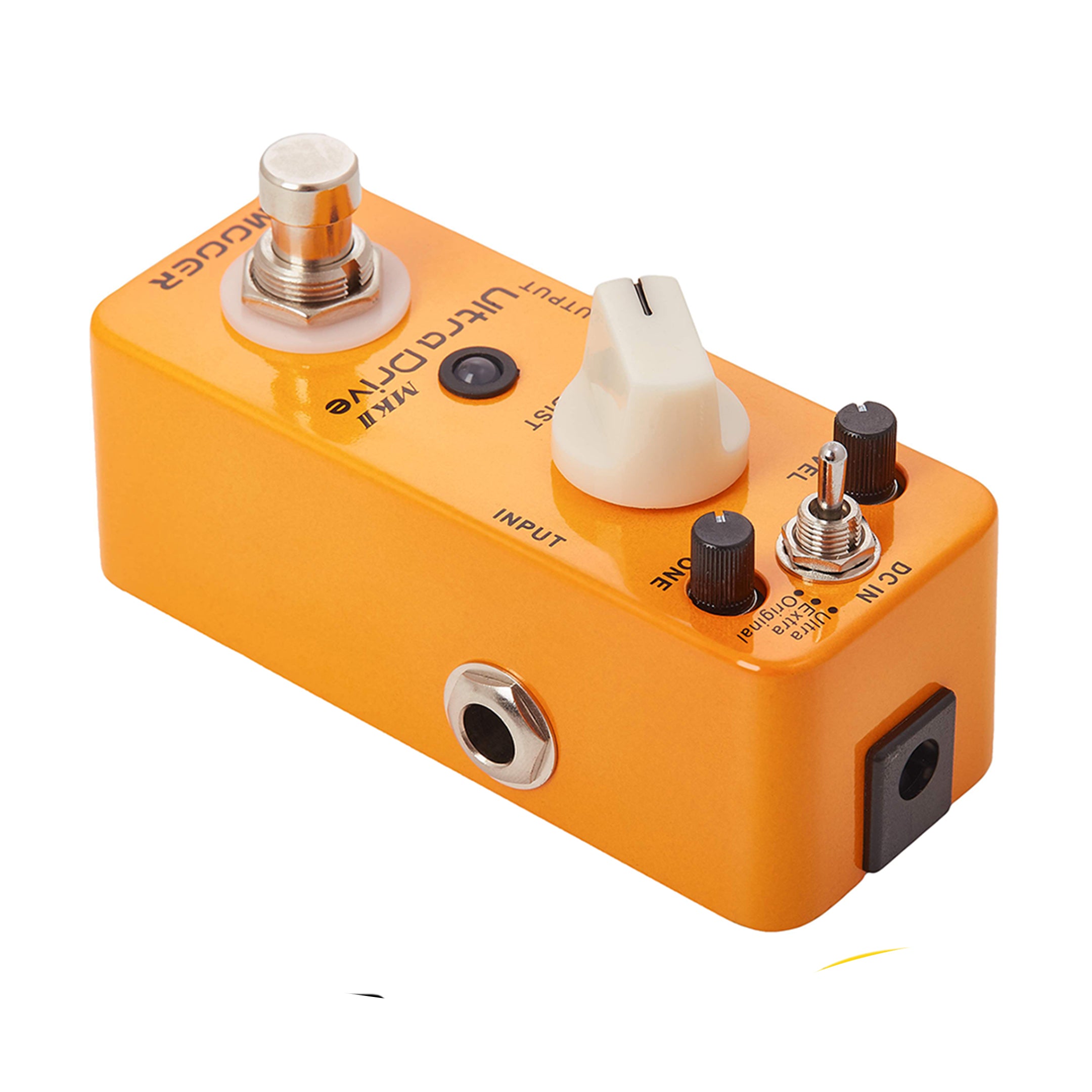

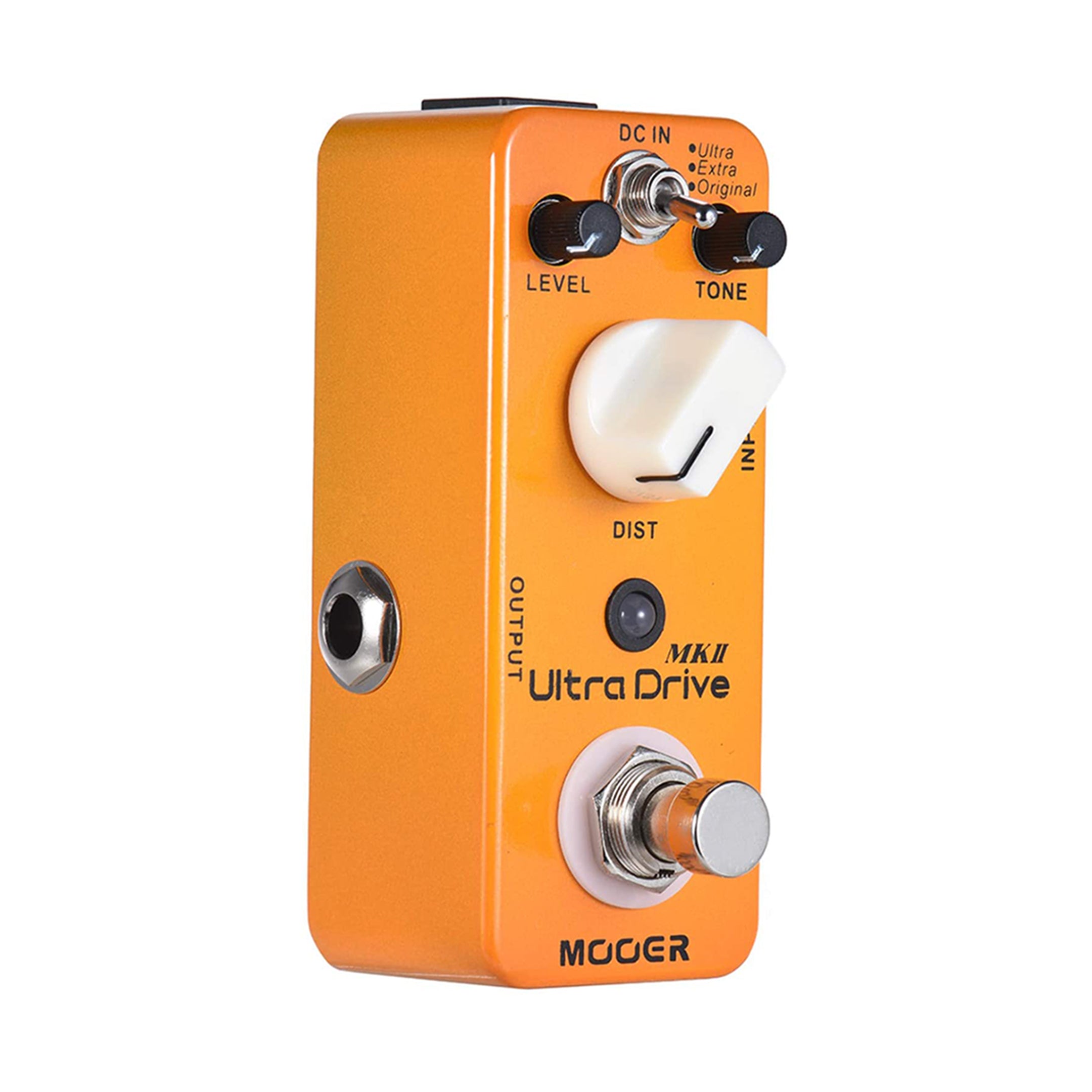

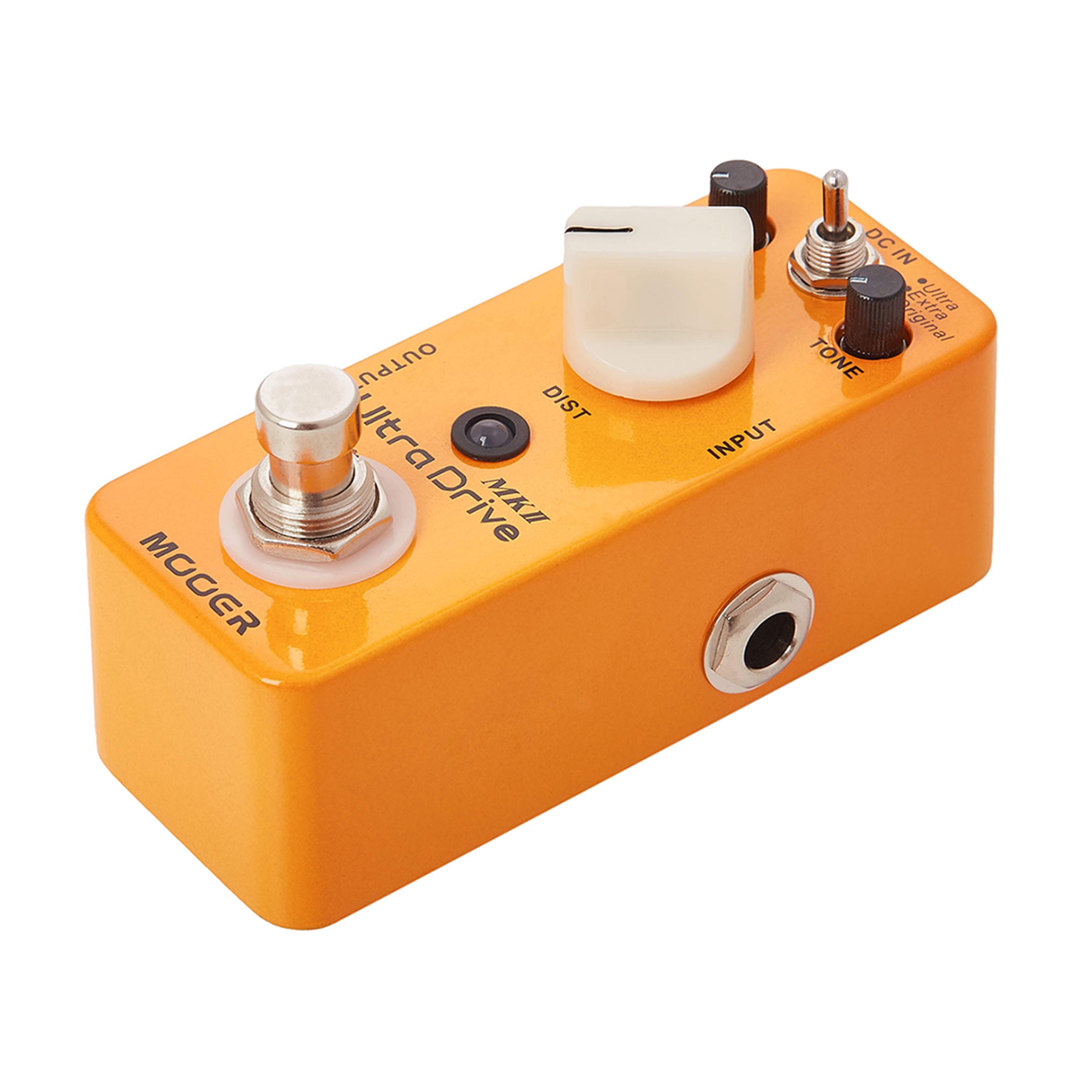

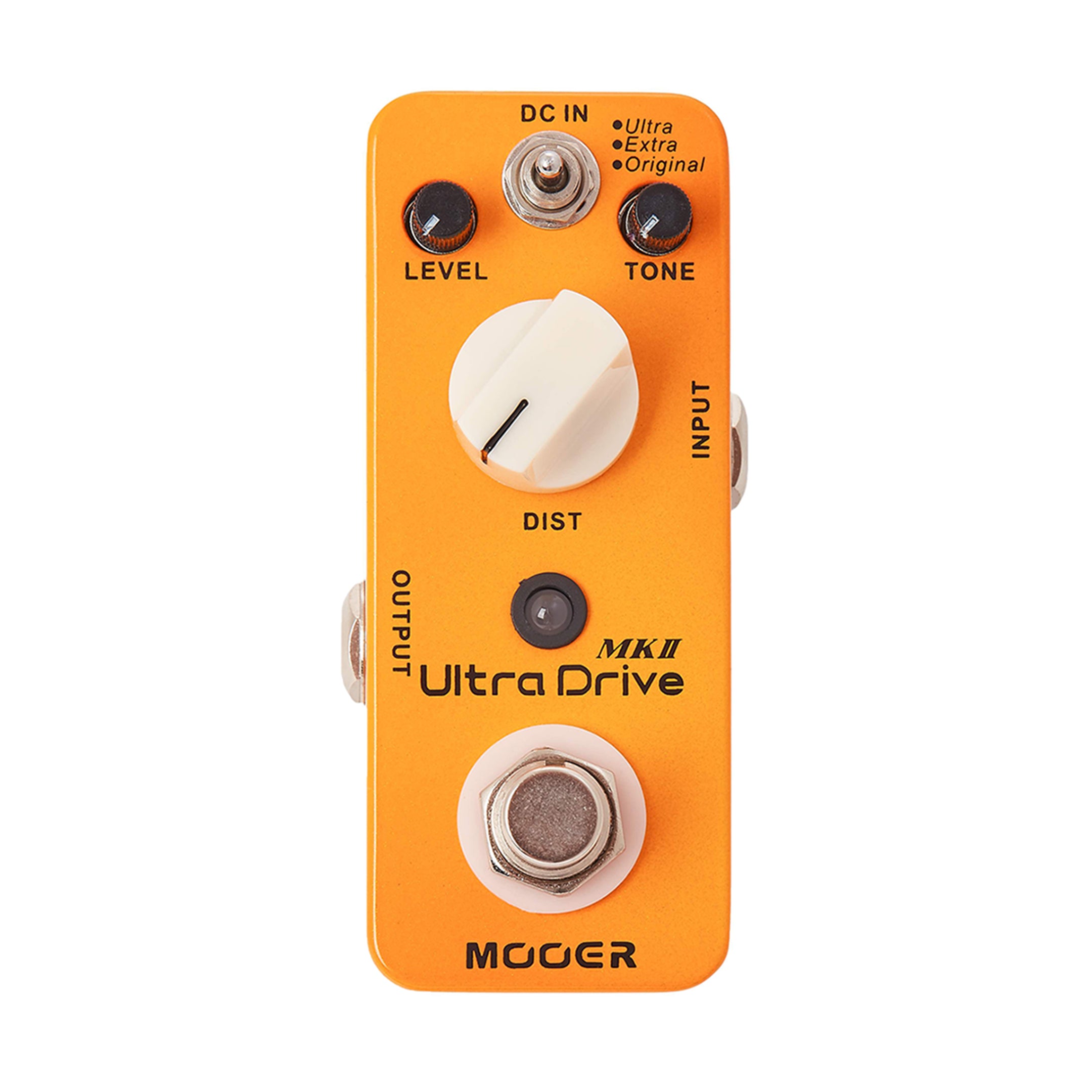

Mooer ULTRA DRIVEMKII
Mini size housing with 3 modes This is a distortion pedal with built-in distortion.
*In MkII, some chips have been changed from the first version to achieve higher quality sound.
Since it's true bypass, you don't have to worry about the tone changing when you bypass the effect.
The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.
Features
Classic distortion pedal with three operating modes to choose from
Original: Powerful, edgy distortion
Extra: Higher gain, tube-like distortion
Ultra: Distortion like a wall of thick distortion
Full metal housing
Ultra Small, compact design
True bypass
Powered by standard DC9V adapter
Controls
LEVEL: Adjusts the overall volume.
TONE: Controls the tone of the sound.
DIST: Adjust the strength of distortion.
Ultra/Extra/Original switch: Select 3 types of operation mode.
Connections
Specification
Input | 1/4 inch monaural audio jack (impedance: 470kΩ) |
Output | 1/4 inch monaural audio jack (impedance: 10kΩ) |
Power Supply | Regulated center negative DC9V adapter (do not use batteries) ) |
Current Consumption | 6mA |
Size | 93.5mm (D) x 42mm (W) x 52mm (H) |
Weight | 160g |
