Description

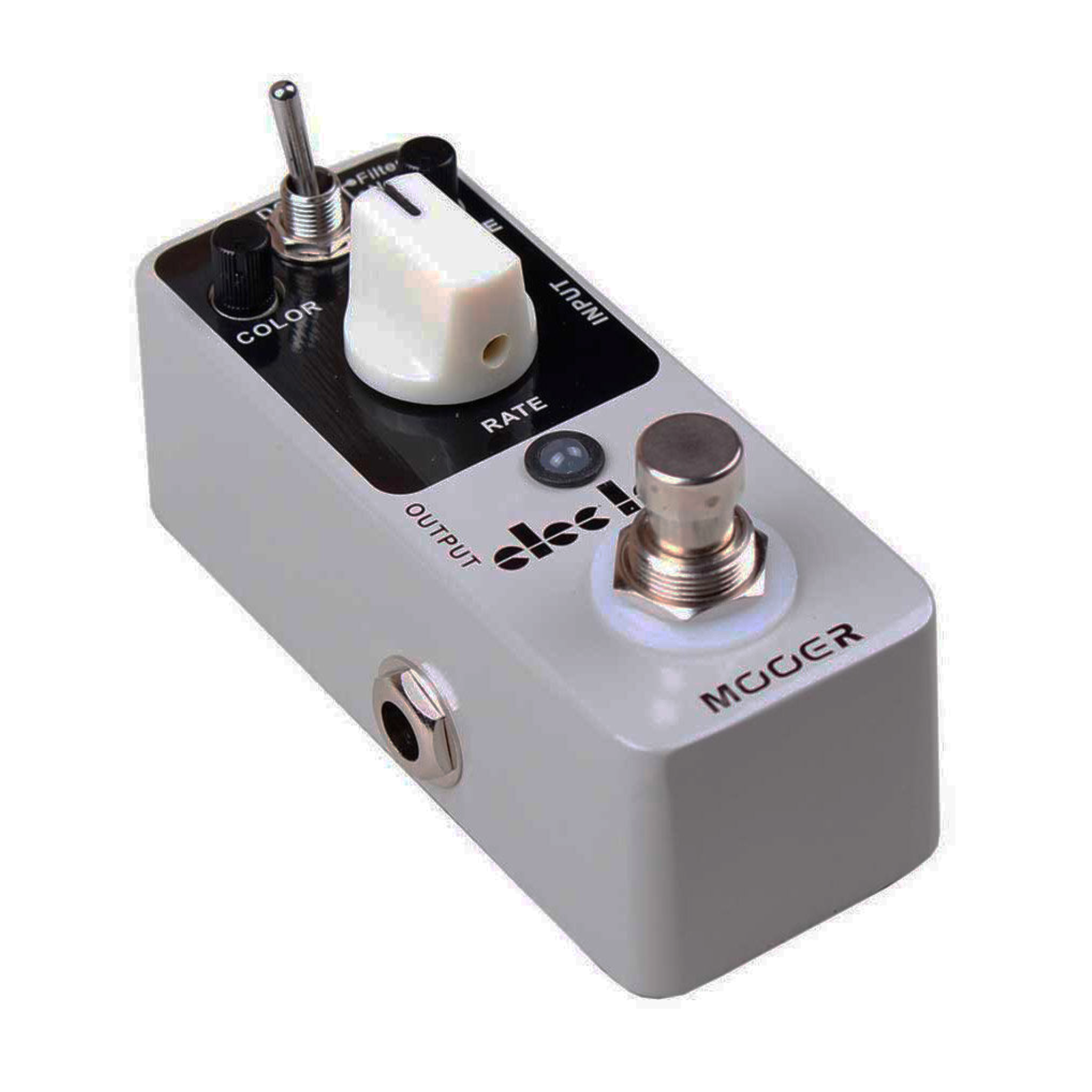

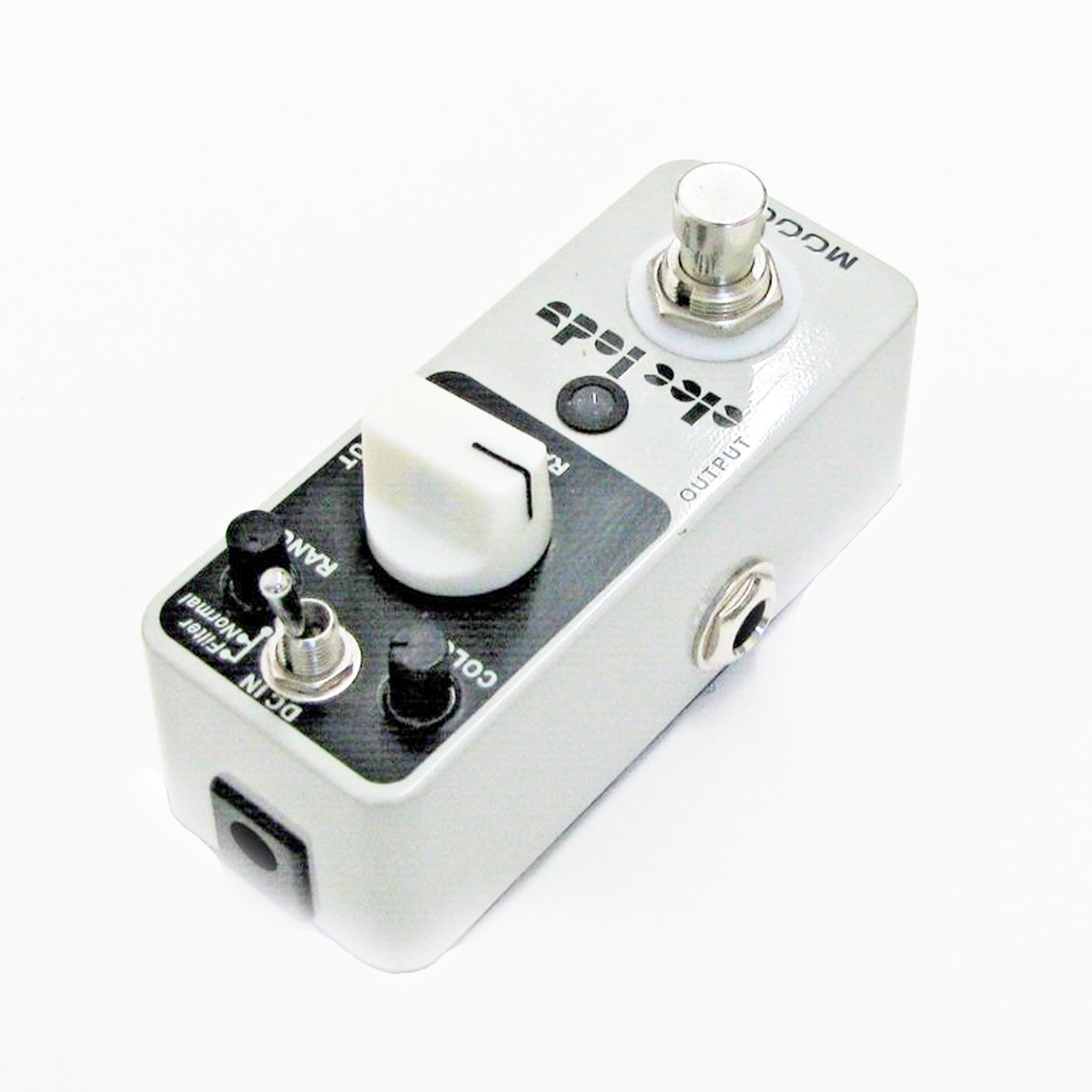

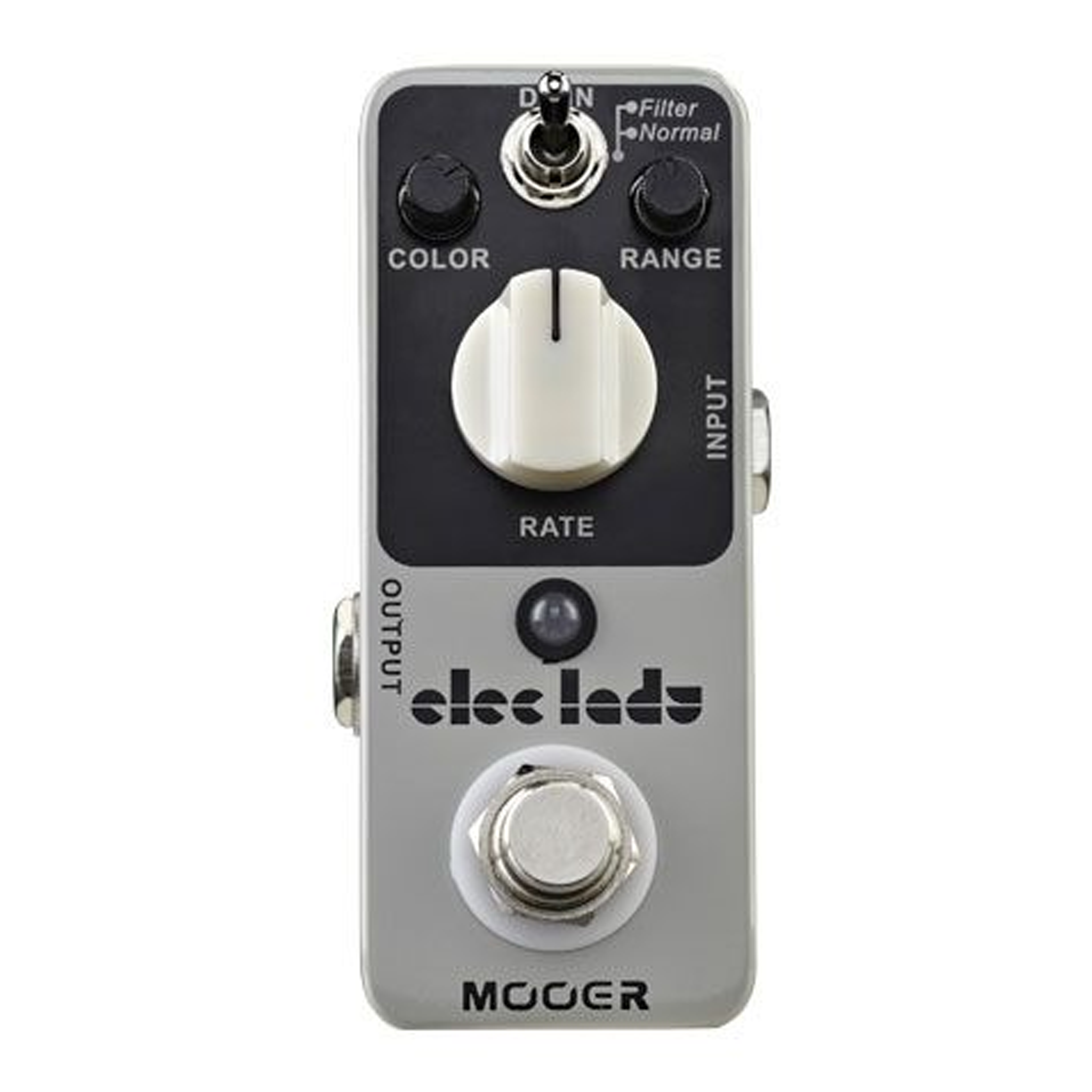

Mooer ELECLADY E- Lady Analog Flanger Pedal



Mooer E-lady creates a classic analog flanger effect. This is a pedal to create.

You can switch between two modes: Normal/Filter with a toggle switch.
In Normal mode, it operates as a normal flanger.
In Filter mode, the phaser wavering is eliminated, and you can create unique tones by adjusting the filter effect using a combination of the COLOR and RANGE knobs. The RATE knob is not used in Filter mode.



Also, in either mode, as you turn the COLOR knob, self-oscillation begins. This allows you to create even more aggressive sounds or use it as a noise machine.

Since it is a true bypass specification, there is no need to worry about the tone changing when bypassing.

The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.

Features

・Analog flanger that can also set filter mode and oscillate
・Two modes of Normal/Filter can be set
・Full metal housing
・Ultra small and compact design
・True bypass
・Powered by standard DC9V adapter

Normal/Filter

・Normal: Works as a normal flanger.
・Filter: Eliminates flanger vibration and creates a unique filter effect.

Control

E-Lady

COLOR: Adjust the flanger feedback amount.
*If you turn the COLOR knob all the way clockwise, the flanger may oscillate and make noise, but this is normal operation. You can use this characteristic to create unique and individual sounds.
RANGE: In Normal mode, adjusts the sweep range of the flanger, and in Filter mode, provides manual control of the filter matrix. The sweep range increases clockwise.
RATE: Adjust the speed of the filter. Not used in Filter mode.
Normal/Filter switch: Switch between Normal mode and Filter mode.

Specification


Input 1/4 inch monaural audio jack (impedance: 1MΩ)
Output  1/4 inch monaural audio jack (impedance: 510Ω)
Power Supply Regulated center negative DC9V adapter (batteries cannot be used)
Current Consumption 10mA
Dimensions 93.5mm (D) x 42mm (W) x 52mm (H)
Weight 160g



Mooer E-Lady Flanger

Regular price ₱4,475.00

ELECLADY

Description

Mooer ELECLADY E- Lady Analog Flanger Pedal



Mooer E-lady creates a classic analog flanger effect. This is a pedal to create.

You can switch between two modes: Normal/Filter with a toggle switch.
In Normal mode, it operates as a normal flanger.
In Filter mode, the phaser wavering is eliminated, and you can create unique tones by adjusting the filter effect using a combination of the COLOR and RANGE knobs. The RATE knob is not used in Filter mode.



Also, in either mode, as you turn the COLOR knob, self-oscillation begins. This allows you to create even more aggressive sounds or use it as a noise machine.

Since it is a true bypass specification, there is no need to worry about the tone changing when bypassing.

The power supply works with a DC9V center negative adapter.
It does not support operation on batteries.

Features

・Analog flanger that can also set filter mode and oscillate
・Two modes of Normal/Filter can be set
・Full metal housing
・Ultra small and compact design
・True bypass
・Powered by standard DC9V adapter

Normal/Filter

・Normal: Works as a normal flanger.
・Filter: Eliminates flanger vibration and creates a unique filter effect.

Control

E-Lady

COLOR: Adjust the flanger feedback amount.
*If you turn the COLOR knob all the way clockwise, the flanger may oscillate and make noise, but this is normal operation. You can use this characteristic to create unique and individual sounds.
RANGE: In Normal mode, adjusts the sweep range of the flanger, and in Filter mode, provides manual control of the filter matrix. The sweep range increases clockwise.
RATE: Adjust the speed of the filter. Not used in Filter mode.
Normal/Filter switch: Switch between Normal mode and Filter mode.

Specification


Input 1/4 inch monaural audio jack (impedance: 1MΩ)
Output  1/4 inch monaural audio jack (impedance: 510Ω)
Power Supply Regulated center negative DC9V adapter (batteries cannot be used)
Current Consumption 10mA
Dimensions 93.5mm (D) x 42mm (W) x 52mm (H)
Weight 160g



Mooer E-Lady Flanger
