Description

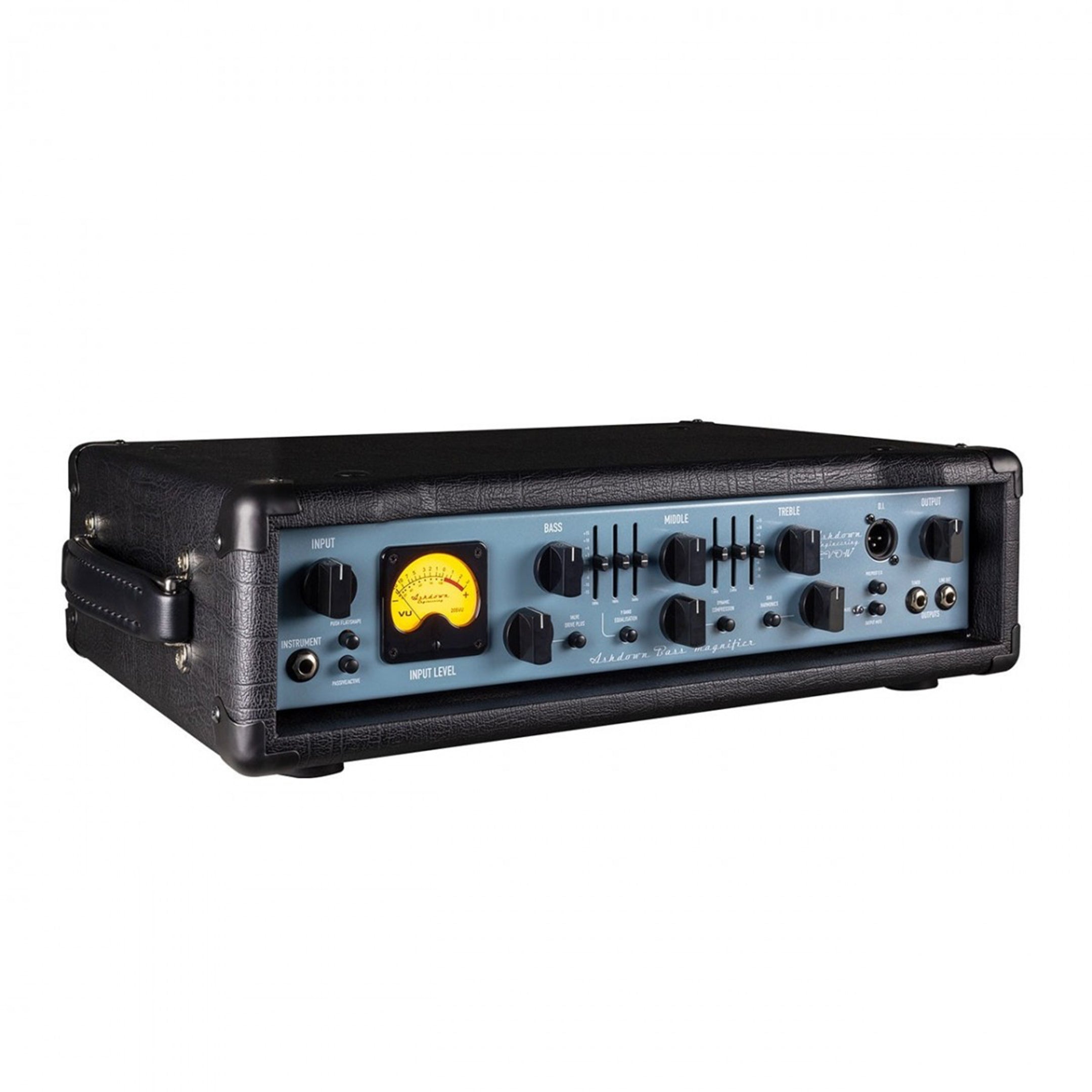

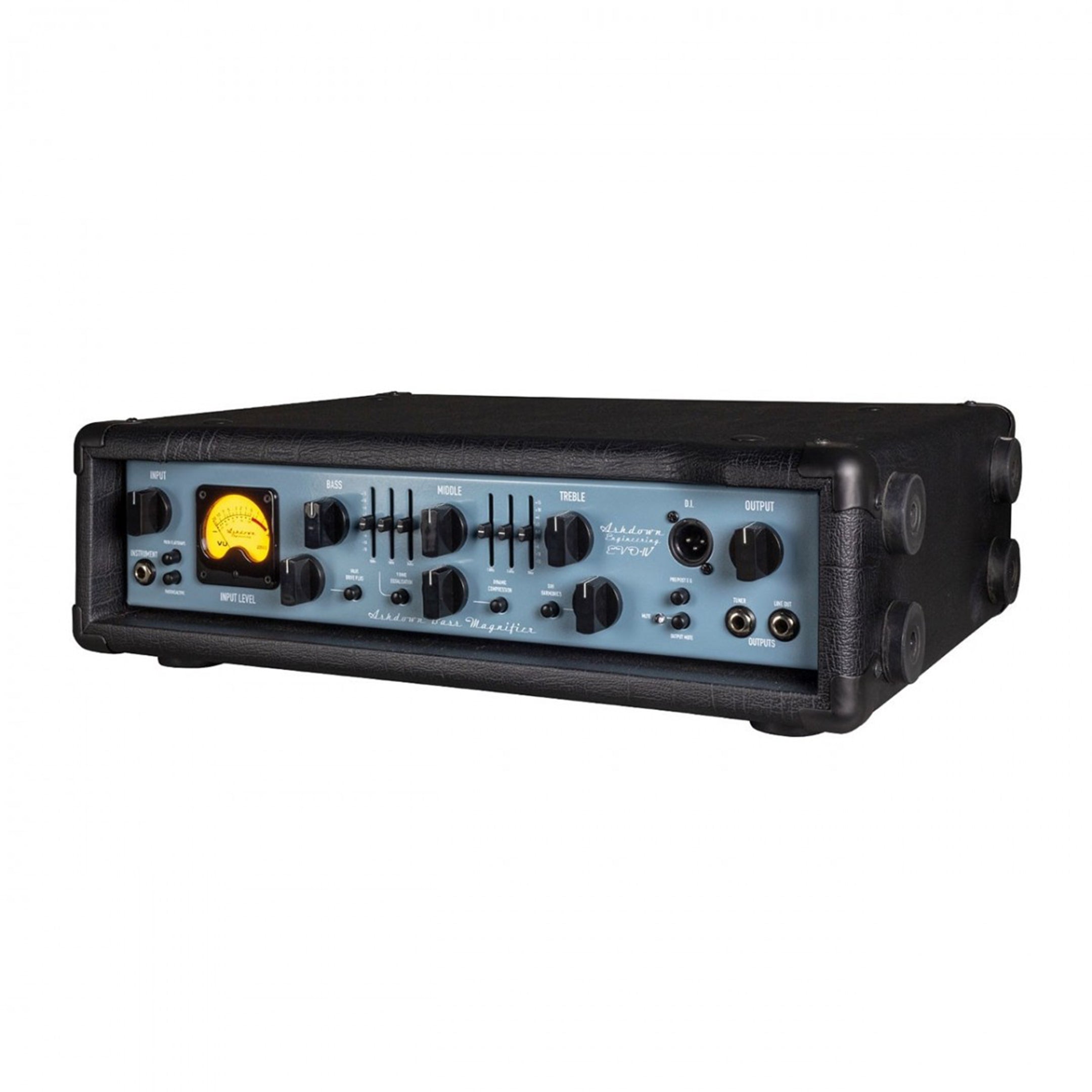

Ashdown ABM-600-EVO IV 600W Bass Amp Head



Immediately identifiable on stages around the world thanks to it's glowing VU meter. Over the past 20 years the Ashdown ABM range has become the industry standard for bass players in pursuit of real bass tone, versatility, power and tour proven reliability.

Variable Valve Drive Plus – from zero to rock hero

The valve drive preamp section can be adjusted from clean sound to overdrive. Drive levels can be preset memorized and recalled using a footswitch (sold separately).

The best EQ in the business, just got better

The distinctive VU input level meter allows players to quickly find their instrument's sweet spot. It also has 9 EQ bands. Sophisticated rotary controls for bass, middle, and treble, and six sliders providing precise cut and boost at 100Hz, 180Hz, 340Hz, 1.3KHz, 2.6KHz and 5KHz. These offer a wide range of EQ variations and can be tailored to suit any gig.

Professional Connections

Ashdown's ABM head is equipped with a tuner output, line output, transparent FX loop, and line input for connecting an external sampler or sound source. The output mute function cuts the signal from the DI OUT, but the tuner OUT remains output for silent tuning. You can also add the optional FS-4 footswitch to control compression, EQ, drive, and subharmonics with your feet.

Specification

power output 600W RMS
speaker output terminal Combo terminal x2 (Speakon, 1/4”Phone)
speaker output impedance 4Ω(Minimum)
Frequency characteristic -3dB@17Hz to 30kHz
Input impedance (Hi) 3.9MΩ(150mV - 20V p-p)
Input impedance (Low) 10kΩ(300mV - 40V p-p)
line input impedance 22kΩ(0dBu)
DI output impedance 600Ω(-20dBu with Ground Lift)
tuner output impedance 22kΩ(0dBu)
SEND impedance 22kΩ(0dBu)
Return impedance 22kΩ(0dBu)
preamp tube 12AX7x1
size H135 x W474 x D320mm
weight 12.5kg



Ashdown ABM-600-EVO IV Bass Guitar Amplifier Head
